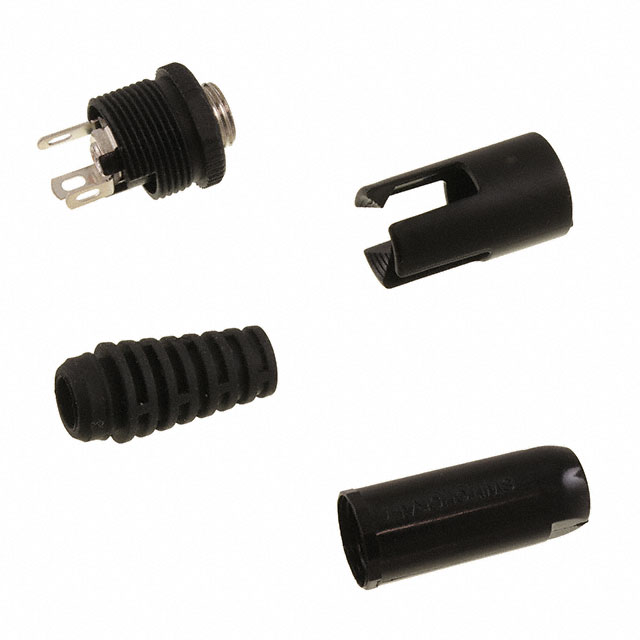

712ACF

Active

Switchcraft Inc.

DC POWER JACK, IN-LINE, 2.5MM, S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

712ACF

Active

Switchcraft Inc.

DC POWER JACK, IN-LINE, 2.5MM, S

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	712ACF

Actual Diameter [diameter]	2.5 mm
Actual Diameter [diameter]	0.098 in
Body Color	Silver, Black
Body Material	Copper Alloy
Connector Type	Jack
Contact Material	Copper Alloy
Contact Material - Plating	Tin
Current Rating (Amps)	5 A
Features	Strain Relief
Gender	Male
Housing Material	Thermoplastic
Industry Recognized Mating Diameter [diameter]	2.5 mm ID
Industry Recognized Mating Diameter [diameter]	0.098 "
Insulation Color	Black
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shielding	Unshielded
Termination	Solder Eyelet(s)
Voltage - Rated	24 VDC

712A Series

Part	Body Color	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Mounting Type	Gender	Connector Type	Termination	Contact Material - Plating	Insulation Color	Body Material	Shielding	Contact Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Actual Diameter [diameter]	Actual Diameter [diameter]	Voltage - Rated	Features	Number of Positions/Contacts	Housing Material	Mounting Feature	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Mating Length/Depth	Mating Length/Depth	Thread Size	Contact Material - Plating [custom]	Includes	Internal Switch(s)
Switchcraft Inc. 712ACF	Black Silver	2.5 mm ID	0.098 "	Free Hanging (In-Line)	Male	Jack	Solder Eyelet(s)	Tin	Black	Copper Alloy	Unshielded	Copper Alloy	5 A	-40 °C	105 ░C	2.5 mm	0.098 in	24 VDC	Strain Relief	2 Conductors 3 Conductors	Thermoplastic
Switchcraft Inc. 712AC	Black Silver	2.5 mm ID	0.098 "	Free Hanging (In-Line)	Male	Jack	Solder Eyelet(s)	Tin	Black	Copper Alloy	Unshielded	Copper Alloy	5 A	-40 °C	105 ░C	2.5 mm	0.098 in	24 VDC		2 Conductors 3 Conductors	Thermoplastic
Switchcraft Inc. 712AFMS	Silver	2.5 mm 5.5 mm	0.098 " 0.217 "		Male	Jack	Solder Cup Solder Eyelet		Silver	Brass	Shielded	Brass	5 A	-40 °C	65 °C			48 V			Acrylonitrile Butadiene Styrene (ABS)	Bulkhead - Rear Side Nut	2	2	2.5 mm	0.098 "	0.217 "	5.5 mm	0.374 in	9.5 mm	M11x1	Nickel	Mounting Hardware
Switchcraft Inc. 712AH	Black Silver	2.5 mm ID	0.098 "	Through Hole	Male	Jack	Through Hole			Copper Alloy	Unshielded	Copper Alloy						48 V		2 Conductors 3 Conductors	Thermoplastic										5/16"-32	Nickel	Connector Nut Washer	Single Switch

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.58
		10	$ 5.92
		25	$ 5.58
		50	$ 5.43
		100	$ 5.29
		300	$ 4.72
		500	$ 4.43
		1000	$ 4.41

Description

General part information

712A Series

Power Barrel Connector Jack 2.50mm ID (0.098") Free Hanging (In-Line)
