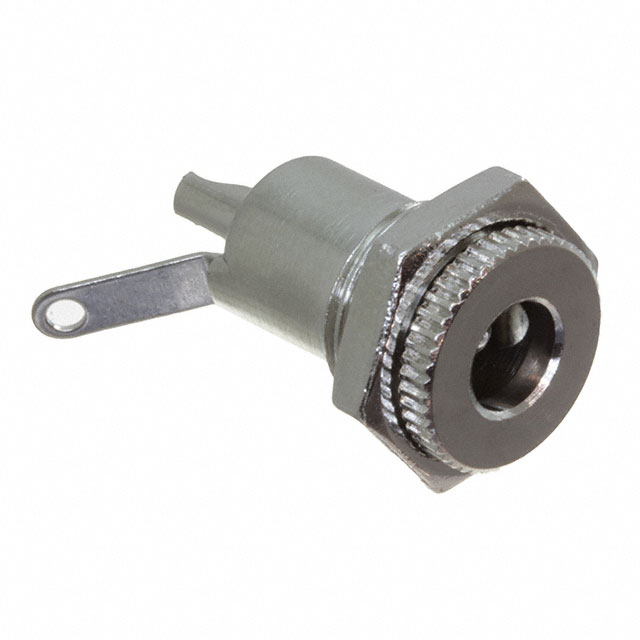

712AFMS

Active

Switchcraft Inc.

DC POWER JACK, SHIELDED, FRONT P

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

712AFMS

Active

Switchcraft Inc.

DC POWER JACK, SHIELDED, FRONT P

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	712AFMS

Actual Diameter [custom]	2.5 mm
Actual Diameter [custom]	0.098 "
Actual Diameter [custom]	0.217 "
Actual Diameter [custom]	5.5 mm
Body Color	Silver
Body Material	Brass
Connector Type	Jack
Contact Material	Brass
Contact Material - Plating [custom]	Nickel
Current Rating (Amps)	5 A
Gender	Male
Housing Material	Acrylonitrile Butadiene Styrene (ABS)
Includes	Mounting Hardware
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.5 mm
Industry Recognized Mating Diameter [diameter]	0.098 ", 0.217 "
Insulation Color	Silver
Internal Switch(s)	False
Mating Length/Depth	0.374 in
Mating Length/Depth	9.5 mm
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Shielding	Shielded
Termination	Solder Cup, Solder Eyelet
Thread Size	M11x1
Voltage - Rated	48 V

712A Series

Part	Body Color	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Mounting Type	Gender	Connector Type	Termination	Contact Material - Plating	Insulation Color	Body Material	Shielding	Contact Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Actual Diameter [diameter]	Actual Diameter [diameter]	Voltage - Rated	Features	Number of Positions/Contacts	Housing Material	Mounting Feature	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Mating Length/Depth	Mating Length/Depth	Thread Size	Contact Material - Plating [custom]	Includes	Internal Switch(s)
Switchcraft Inc. 712ACF	Black Silver	2.5 mm ID	0.098 "	Free Hanging (In-Line)	Male	Jack	Solder Eyelet(s)	Tin	Black	Copper Alloy	Unshielded	Copper Alloy	5 A	-40 °C	105 ░C	2.5 mm	0.098 in	24 VDC	Strain Relief	2 Conductors 3 Conductors	Thermoplastic
Switchcraft Inc. 712AC	Black Silver	2.5 mm ID	0.098 "	Free Hanging (In-Line)	Male	Jack	Solder Eyelet(s)	Tin	Black	Copper Alloy	Unshielded	Copper Alloy	5 A	-40 °C	105 ░C	2.5 mm	0.098 in	24 VDC		2 Conductors 3 Conductors	Thermoplastic
Switchcraft Inc. 712AFMS	Silver	2.5 mm 5.5 mm	0.098 " 0.217 "		Male	Jack	Solder Cup Solder Eyelet		Silver	Brass	Shielded	Brass	5 A	-40 °C	65 °C			48 V			Acrylonitrile Butadiene Styrene (ABS)	Bulkhead - Rear Side Nut	2	2	2.5 mm	0.098 "	0.217 "	5.5 mm	0.374 in	9.5 mm	M11x1	Nickel	Mounting Hardware
Switchcraft Inc. 712AH	Black Silver	2.5 mm ID	0.098 "	Through Hole	Male	Jack	Through Hole			Copper Alloy	Unshielded	Copper Alloy						48 V		2 Conductors 3 Conductors	Thermoplastic										5/16"-32	Nickel	Connector Nut Washer	Single Switch

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.96
		10	$ 4.50
		25	$ 4.27
		50	$ 4.17
		100	$ 3.97
		250	$ 3.47
		500	$ 3.37
		1000	$ 3.06

Description

General part information

712A Series

Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Panel Mount
