733-104

Active

WAGO Corporation

PLUGGABLE TERMINAL BLOCK, 2.5 MM, 4 POSITIONS, 28 AWG, 20 AWG, 0.5 MM², CLAMP

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image EN Operating Instructions EN +1

733-104

Active

WAGO Corporation

PLUGGABLE TERMINAL BLOCK, 2.5 MM, 4 POSITIONS, 28 AWG, 20 AWG, 0.5 MM², CLAMP

Deep-Dive with AI

Documents3D Product Image EN Operating Instructions EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	733-104

Color	Gray
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - IEC	6 A
Current - UL	4 A
Insulation Height	0.465 in
Insulation Height	11.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	4
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-60 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Positions Per Level	4
Termination Style	Screwless - Spring Cage, Tension Clamp
Type	Plug, Female Sockets
Voltage - IEC	320 V
Voltage - UL	150 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	20 AWG
Wire Gauge or Range - mm˛ [Max]	0.5 mm˛
Wire Gauge or Range - mm˛ [Min]	0.08 mm˛
Wire Strip Length [Max]	6 mm
Wire Strip Length [Min]	5 mm

733 Series

Part	Contact Mating Finish	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - IEC	Positions Per Level	Material Flammability Rating	Contact Material	Number of Positions	Current - IEC	Insulation Height	Insulation Height	Wire Strip Length [Min]	Wire Strip Length [Max]	Mounting Type	Termination Style	Type	Voltage - UL	Pitch [x]	Pitch [x]	Current - UL	Color	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
WAGO Corporation 733-102	Tin	100 °C	-60 °C	20 AWG	28 AWG	1	0.08 mm²	0.5 mm²	320 V	2	UL94 V-0	Copper Alloy	2	6 A	0.465 in	11.8 mm	5 mm	6 mm	Free Hanging (In-Line)	Screwless - Spring Cage Tension Clamp	Plug Female Sockets	150 V	0.098 in	2.5 mm	4 A	Gray
WAGO Corporation 733-104	Tin	100 °C	-60 °C	20 AWG	28 AWG	1			320 V	4	UL94 V-0	Copper Alloy	4	6 A	0.465 in	11.8 mm	5 mm	6 mm	Free Hanging (In-Line)	Screwless - Spring Cage Tension Clamp	Plug Female Sockets	150 V	0.098 in	2.5 mm	4 A	Gray	0.5 mm˛	0.08 mm˛
WAGO Corporation 733-105	Tin	100 °C	-60 °C	20 AWG	28 AWG	1	0.08 mm²	0.5 mm²	320 V	5	UL94 V-0	Copper Alloy		6 A	0.465 in	11.8 mm	5 mm	6 mm	Free Hanging (In-Line)	Screwless - Spring Cage Tension Clamp	Plug Female Sockets	150 V	0.098 in	2.5 mm	4 A	Gray
WAGO Corporation 733-103	Tin	100 °C	-60 °C	20 AWG	28 AWG	1	0.08 mm²	0.5 mm²	320 V	3	UL94 V-0	Copper Alloy		6 A	0.465 in	11.8 mm	5 mm	6 mm	Free Hanging (In-Line)	Screwless - Spring Cage Tension Clamp	Plug Female Sockets	150 V	0.098 in	2.5 mm	4 A	Gray

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.36
		10	$ 4.85
		100	$ 3.95
		1000	$ 2.92
Newark	Each	1	$ 5.63
		25	$ 5.37
		100	$ 5.03
		250	$ 4.76
		500	$ 4.38

Description

General part information

733 Series

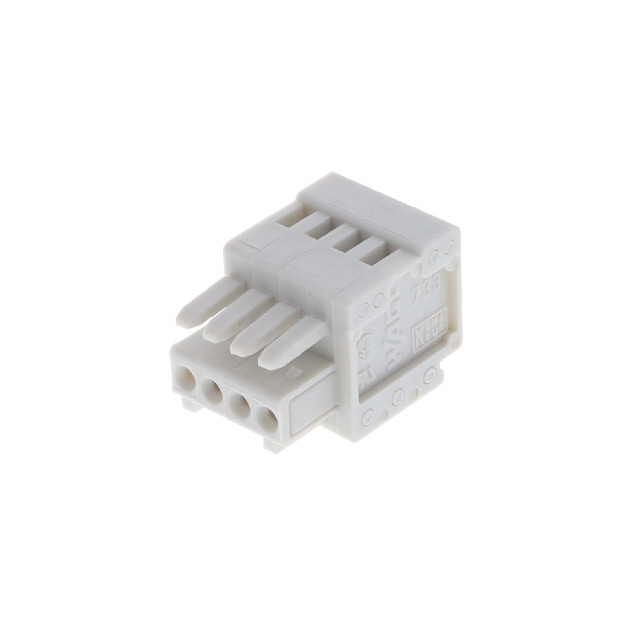

The 733-104 is a 4-pole light grey Female Connector with coding fingers. This connector has tin-plated copper alloy contacts and a polyamide 6.6 insulator. It accepts 28 to 20AWG wire size.
