Technical Specifications
Parameters and characteristics for this part
| Specification | 733-105 |
|---|---|
| Color | Gray |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Current - IEC | 6 A |
| Current - UL | 4 A |
| Insulation Height | 0.465 in |
| Insulation Height | 11.8 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -60 °C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Positions Per Level | 5 |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Type | Plug, Female Sockets |
| Voltage - IEC | 320 V |
| Voltage - UL | 150 V |
| Wire Gauge or Range - AWG [Max] | 28 AWG |
| Wire Gauge or Range - AWG [Min] | 20 AWG |
| Wire Gauge or Range - mm² [Max] | 0.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.08 mm² |
| Wire Strip Length [Max] | 6 mm |
| Wire Strip Length [Min] | 5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
733 Series

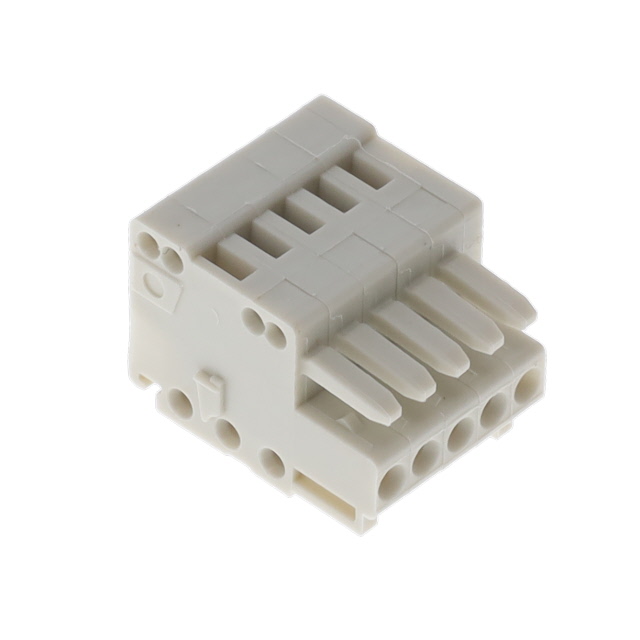

The 733-105 is a 5-position light gray Female Connector with coding fingers. It is made with the tin-plated copper alloy contacts, chrome-nickel spring steel (CrNi) clamping spring and polyamide 66 (PA 66) insulator. It features easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP® actuation and strain relief plates, factory assembled or in-the-field installation and universal connection for all conductor types.
