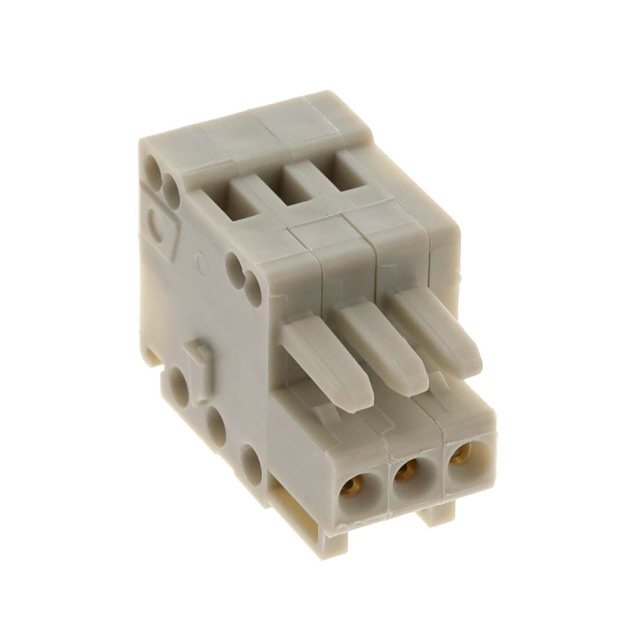

733-103

Active

WAGO Corporation

PLUGGABLE TERMINAL BLOCK, 2.5 MM, 3 POSITIONS, 28 AWG, 20 AWG, 0.5 MM², CLAMP

Search across all available documentation for this part.

Active

WAGO Corporation

PLUGGABLE TERMINAL BLOCK, 2.5 MM, 3 POSITIONS, 28 AWG, 20 AWG, 0.5 MM², CLAMP

Technical Specifications

Parameters and characteristics for this part

Specification	733-103

Color	Gray
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - IEC	6 A
Current - UL	4 A
Insulation Height	0.465 in
Insulation Height	11.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-60 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Positions Per Level	3
Termination Style	Screwless - Spring Cage, Tension Clamp
Type	Plug, Female Sockets
Voltage - IEC	320 V
Voltage - UL	150 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	20 AWG
Wire Gauge or Range - mm² [Max]	0.5 mm²
Wire Gauge or Range - mm² [Min]	0.08 mm²
Wire Strip Length [Max]	6 mm
Wire Strip Length [Min]	5 mm

Part	Contact Mating Finish	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - IEC	Positions Per Level	Material Flammability Rating	Contact Material	Number of Positions	Current - IEC	Insulation Height	Insulation Height	Wire Strip Length [Min]	Wire Strip Length [Max]	Mounting Type	Termination Style	Type	Voltage - UL	Pitch [x]	Pitch [x]	Current - UL	Color	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
WAGO Corporation 733-102	Tin	100 °C	-60 °C	20 AWG	28 AWG	1	0.08 mm²	0.5 mm²	320 V	2	UL94 V-0	Copper Alloy	2	6 A	0.465 in	11.8 mm	5 mm	6 mm	Free Hanging (In-Line)	Screwless - Spring Cage Tension Clamp	Plug Female Sockets	150 V	0.098 in	2.5 mm	4 A	Gray
WAGO Corporation 733-104	Tin	100 °C	-60 °C	20 AWG	28 AWG	1			320 V	4	UL94 V-0	Copper Alloy	4	6 A	0.465 in	11.8 mm	5 mm	6 mm	Free Hanging (In-Line)	Screwless - Spring Cage Tension Clamp	Plug Female Sockets	150 V	0.098 in	2.5 mm	4 A	Gray	0.5 mm˛	0.08 mm˛
WAGO Corporation 733-105	Tin	100 °C	-60 °C	20 AWG	28 AWG	1	0.08 mm²	0.5 mm²	320 V	5	UL94 V-0	Copper Alloy		6 A	0.465 in	11.8 mm	5 mm	6 mm	Free Hanging (In-Line)	Screwless - Spring Cage Tension Clamp	Plug Female Sockets	150 V	0.098 in	2.5 mm	4 A	Gray
WAGO Corporation 733-103	Tin	100 °C	-60 °C	20 AWG	28 AWG	1	0.08 mm²	0.5 mm²	320 V	3	UL94 V-0	Copper Alloy		6 A	0.465 in	11.8 mm	5 mm	6 mm	Free Hanging (In-Line)	Screwless - Spring Cage Tension Clamp	Plug Female Sockets	150 V	0.098 in	2.5 mm	4 A	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Terminal Block Plug, Female Sockets 0.098" (2.50mm) 180° Free Hanging (In-Line)
