C90-3102R10SL-4S
ActiveCIRCULAR CONNECTOR, PANEL MOUNT RECEPTACLE, 2 CONTACTS, SOLDER SOCKET, ALUMINUM ALLOY BODY
Deep-Dive with AI
Search across all available documentation for this part.
C90-3102R10SL-4S
ActiveCIRCULAR CONNECTOR, PANEL MOUNT RECEPTACLE, 2 CONTACTS, SOLDER SOCKET, ALUMINUM ALLOY BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C90-3102R10SL-4S |
|---|---|
| Applications | Industrial, Automotive |
| Cable Opening [custom] | 15.75 mm |
| Cable Opening [custom] | 0.62 in |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Synthetic Rubber |
| Mounting Feature | Flange |
| Number of Positions | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Black Zinc Cobalt Alloy |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 10SL-4 |
| Shielding | Unshielded |
| Voltage Rating | 700 VDC, 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
C90-3102R Series

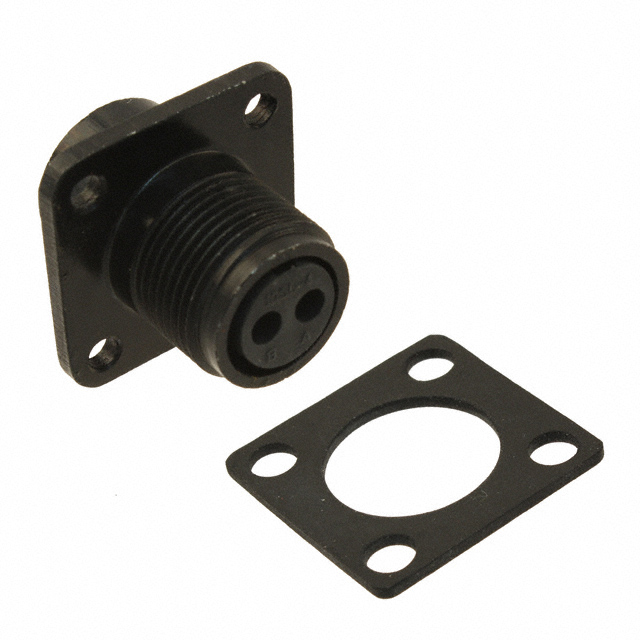

The C90-3102R10SL-4S is a 2-contact panel mount straight female Circular Connector with gasket. The receptacle shell connector accepts 16 to 22AWG cable. It is intermateable with MIL-DTL-5015. It is a low cost, highly durable and rugged connector system. Full environmental sealing with the use of backshells and sealing gaskets. Designed for use in harsh and demanding environments.
