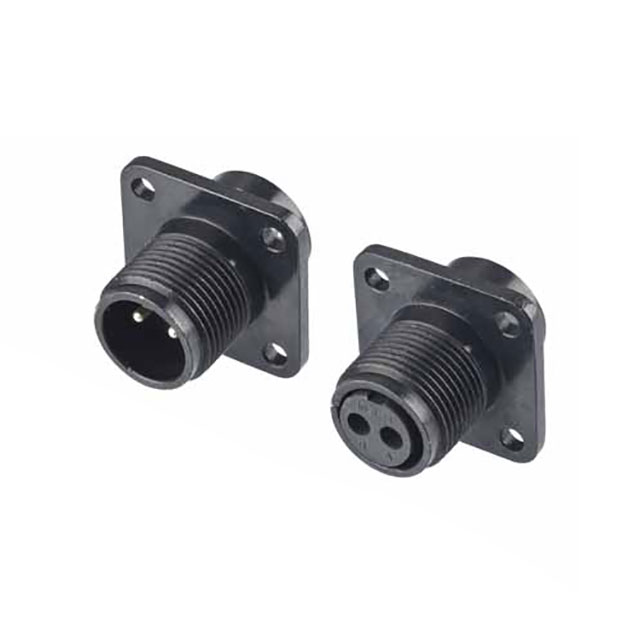

C90-3102R12S-3S

Active

Harwin Inc.

2 POS. CIRCULAR PANEL MOUNT CONN. SOCKET CONTACT ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC90-25042-14S Datasheet +2

C90-3102R12S-3S

Active

Harwin Inc.

2 POS. CIRCULAR PANEL MOUNT CONN. SOCKET CONTACT ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsC90-25042-14S Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C90-3102R12S-3S

Applications	Industrial, Automotive
Cable Opening [custom]	17.17 mm
Cable Opening [custom]	0.676 in
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Rubber
Mounting Feature	Flange
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black Zinc Cobalt Alloy
Shell Material	Aluminum Alloy
Shell Size - Insert	12S-3
Shielding	Unshielded
Voltage Rating	700 VDC, 500 VAC

C90-3102R Series

Part	Shell Finish	Applications	Voltage Rating	Insert Material	Current Rating (Amps)	Shell Material	Ingress Protection	Primary Material	Contact Finish - Mating	Color	Number of Positions	Orientation	Contact Material	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shielding	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]
Harwin Inc. C90-3102R12S-3S	Black Zinc Cobalt Alloy	Automotive Industrial	500 VAC 700 VDC	Synthetic Rubber	13 A	Aluminum Alloy	IP67 - Dust Tight Waterproof	Metal	Silver	Black	2	Keyed	Copper Alloy	Flange	-55 °C	125 °C	Receptacle Female Sockets	Unshielded	12S-3	17.17 mm	0.676 in
Harwin Inc. C90-3102R10SL-4P	Black Zinc Cobalt Alloy	Automotive Industrial	500 VAC 700 VDC	Synthetic Rubber	13 A	Aluminum Alloy	IP67 - Dust Tight Waterproof	Metal	Silver	Black	2	Keyed	Copper Alloy	Flange	-55 °C	125 °C	Male Pins Receptacle	Unshielded	10SL-4	15.75 mm	0.62 in
Harwin Inc. C90-3102R10SL-3S	Black Zinc Cobalt Alloy	Automotive Industrial	500 VAC 700 VDC	Synthetic Rubber	13 A	Aluminum Alloy	IP67 - Dust Tight Waterproof	Metal	Silver	Black	3	Keyed	Copper Alloy	Flange	-55 °C	125 °C	Receptacle Female Sockets	Unshielded	10SL-3	15.75 mm	0.62 in
Harwin Inc. C90-3102R14S-2S	Black Zinc Cobalt Alloy	Automotive Industrial	200 VAC 250 VDC	Synthetic Rubber	13 A	Aluminum Alloy	IP67 - Dust Tight Waterproof	Metal	Silver	Black	4	Keyed	Copper Alloy	Flange	-55 °C	125 °C	Receptacle Female Sockets	Unshielded	14S-2	18.92 mm	0.745 in
Harwin Inc. C90-3102R14S-2P	Black Zinc Cobalt Alloy	Automotive Industrial	200 VAC 250 VDC	Synthetic Rubber	13 A	Aluminum Alloy	IP67 - Dust Tight Waterproof	Metal	Silver	Black	4	Keyed	Copper Alloy	Flange	-55 °C	125 °C	Male Pins Receptacle	Unshielded	14S-2	18.92 mm	0.745 in
Harwin Inc. C90-3102R14S-6S	Black Zinc Cobalt Alloy	Automotive Industrial	200 VAC 250 VDC	Synthetic Rubber	13 A	Aluminum Alloy	IP67 - Dust Tight Waterproof	Metal	Silver	Black	6	Keyed	Copper Alloy	Flange	-55 °C	125 °C	Receptacle Female Sockets	Unshielded	14S-6	18.92 mm	0.745 in
Harwin Inc. C90-3102R14S-6P	Black Zinc Cobalt Alloy	Automotive Industrial	200 VAC 250 VDC	Synthetic Rubber	13 A	Aluminum Alloy	IP67 - Dust Tight Waterproof	Metal	Silver	Black	6	Keyed	Copper Alloy	Flange	-55 °C	125 °C	Male Pins Receptacle	Unshielded	14S-6	18.92 mm	0.745 in
Harwin Inc. C90-3102R10SL-4S	Black Zinc Cobalt Alloy	Automotive Industrial	500 VAC 700 VDC	Synthetic Rubber	13 A	Aluminum Alloy	IP67 - Dust Tight Waterproof	Metal	Silver	Black	2	Keyed	Copper Alloy	Flange	-55 °C	125 °C	Receptacle Female Sockets	Unshielded	10SL-4	15.75 mm	0.62 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.82
Newark	Each	100	$ 12.58
		250	$ 11.28
		500	$ 10.63
		1000	$ 9.32
		2500	$ 8.87

Description

General part information

C90-3102R Series

2 (Power) Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

C90-25042-14S

Datasheet

C90 Circular Catalog

Datasheet

Technical Data Sheet EN

Datasheet
