C90-3102R10SL-3S

Active

Harwin Inc.

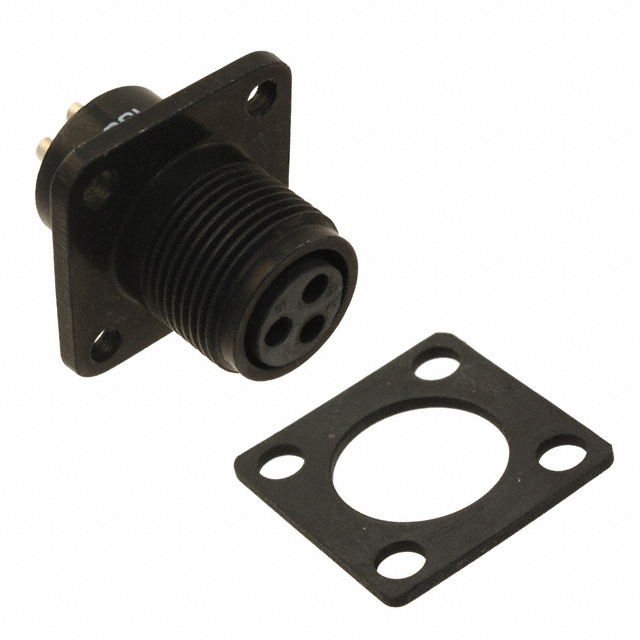

CIRCULAR CONNECTOR, PANEL MOUNT RECEPTACLE, 3 CONTACTS, SOLDER SOCKET, ALUMINUM ALLOY BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC90-25042-14S C90 Circular Catalog +2

C90-3102R10SL-3S

Active

Harwin Inc.

CIRCULAR CONNECTOR, PANEL MOUNT RECEPTACLE, 3 CONTACTS, SOLDER SOCKET, ALUMINUM ALLOY BODY

Deep-Dive with AI

DocumentsC90-25042-14S C90 Circular Catalog +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C90-3102R10SL-3S

Applications	Industrial, Automotive
Cable Opening [custom]	15.75 mm
Cable Opening [custom]	0.62 in
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Rubber
Mounting Feature	Flange
Number of Positions	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black Zinc Cobalt Alloy
Shell Material	Aluminum Alloy
Shell Size - Insert	10SL-3
Shielding	Unshielded
Voltage Rating	700 VDC, 500 VAC

C90-3102R Series

Part	Shell Finish	Applications	Voltage Rating	Insert Material	Current Rating (Amps)	Shell Material	Ingress Protection	Primary Material	Contact Finish - Mating	Color	Number of Positions	Orientation	Contact Material	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shielding	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]
Harwin Inc. C90-3102R12S-3S	Black Zinc Cobalt Alloy	Automotive Industrial	500 VAC 700 VDC	Synthetic Rubber	13 A	Aluminum Alloy	IP67 - Dust Tight Waterproof	Metal	Silver	Black	2	Keyed	Copper Alloy	Flange	-55 °C	125 °C	Receptacle Female Sockets	Unshielded	12S-3	17.17 mm	0.676 in
Harwin Inc. C90-3102R10SL-4P	Black Zinc Cobalt Alloy	Automotive Industrial	500 VAC 700 VDC	Synthetic Rubber	13 A	Aluminum Alloy	IP67 - Dust Tight Waterproof	Metal	Silver	Black	2	Keyed	Copper Alloy	Flange	-55 °C	125 °C	Male Pins Receptacle	Unshielded	10SL-4	15.75 mm	0.62 in
Harwin Inc. C90-3102R10SL-3S	Black Zinc Cobalt Alloy	Automotive Industrial	500 VAC 700 VDC	Synthetic Rubber	13 A	Aluminum Alloy	IP67 - Dust Tight Waterproof	Metal	Silver	Black	3	Keyed	Copper Alloy	Flange	-55 °C	125 °C	Receptacle Female Sockets	Unshielded	10SL-3	15.75 mm	0.62 in
Harwin Inc. C90-3102R14S-2S	Black Zinc Cobalt Alloy	Automotive Industrial	200 VAC 250 VDC	Synthetic Rubber	13 A	Aluminum Alloy	IP67 - Dust Tight Waterproof	Metal	Silver	Black	4	Keyed	Copper Alloy	Flange	-55 °C	125 °C	Receptacle Female Sockets	Unshielded	14S-2	18.92 mm	0.745 in
Harwin Inc. C90-3102R14S-2P	Black Zinc Cobalt Alloy	Automotive Industrial	200 VAC 250 VDC	Synthetic Rubber	13 A	Aluminum Alloy	IP67 - Dust Tight Waterproof	Metal	Silver	Black	4	Keyed	Copper Alloy	Flange	-55 °C	125 °C	Male Pins Receptacle	Unshielded	14S-2	18.92 mm	0.745 in
Harwin Inc. C90-3102R14S-6S	Black Zinc Cobalt Alloy	Automotive Industrial	200 VAC 250 VDC	Synthetic Rubber	13 A	Aluminum Alloy	IP67 - Dust Tight Waterproof	Metal	Silver	Black	6	Keyed	Copper Alloy	Flange	-55 °C	125 °C	Receptacle Female Sockets	Unshielded	14S-6	18.92 mm	0.745 in
Harwin Inc. C90-3102R14S-6P	Black Zinc Cobalt Alloy	Automotive Industrial	200 VAC 250 VDC	Synthetic Rubber	13 A	Aluminum Alloy	IP67 - Dust Tight Waterproof	Metal	Silver	Black	6	Keyed	Copper Alloy	Flange	-55 °C	125 °C	Male Pins Receptacle	Unshielded	14S-6	18.92 mm	0.745 in
Harwin Inc. C90-3102R10SL-4S	Black Zinc Cobalt Alloy	Automotive Industrial	500 VAC 700 VDC	Synthetic Rubber	13 A	Aluminum Alloy	IP67 - Dust Tight Waterproof	Metal	Silver	Black	2	Keyed	Copper Alloy	Flange	-55 °C	125 °C	Receptacle Female Sockets	Unshielded	10SL-4	15.75 mm	0.62 in
