920-504J-52P

Active

Amphenol RF

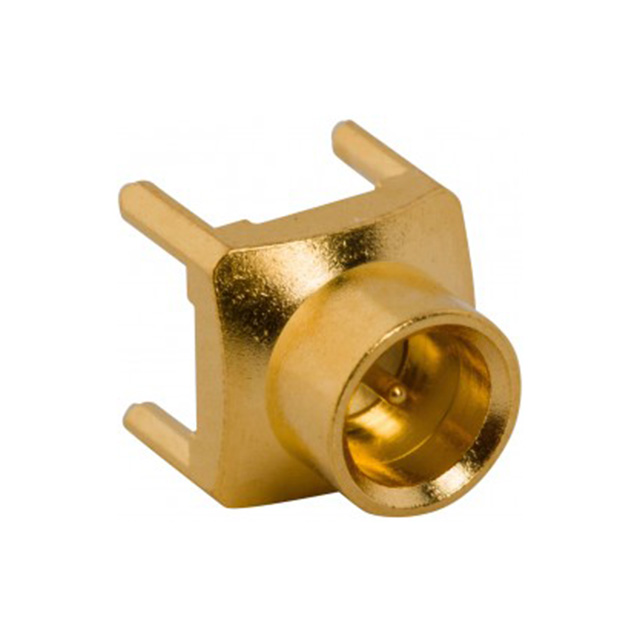

RF / COAXIAL CONNECTOR, MICROMINIATURE COAXIAL, STRAIGHT JACK, THROUGH HOLE VERTICAL, 50 OHM

Search across all available documentation for this part.

Active

Amphenol RF

RF / COAXIAL CONNECTOR, MICROMINIATURE COAXIAL, STRAIGHT JACK, THROUGH HOLE VERTICAL, 50 OHM

Technical Specifications

Parameters and characteristics for this part

Part	Body Finish	Number of Ports	Body Material	Mounting Type	Center Contact Material	Connector Style	Mating Cycles	Contact Termination	Dielectric Material	Features	Fastening Type	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Frequency - Max [Max]	Insertion Loss	Connector Type	Impedance	Housing Color
Amphenol RF 920-507J-52P	Nickel	1	Brass	Board Edge End Launch	Brass	EFI HD	50	Solder	Polytetrafluoroethylene (PTFE)	Limited Detent	Push-Pull	Solder	125 °C	-45 °C	Gold	6000 MHz	0.1 dB	Female Socket Jack	50 Ohms	Gold
Amphenol RF 920-502J-52P	Nickel	1	Brass	Surface Mount	Brass	EFI HD	50	Solder	Liquid Crystal Polymer (LCP)	Limited Detent	Push-Pull	Solder	125 °C	-45 °C	Gold	6000 MHz	0.1 dB	Female Socket Jack	50 Ohms	Gold
Amphenol RF 920-501J-53P	Nickel	1	Brass	Surface Mount	Brass	EFI HD	200	Solder	Liquid Crystal Polymer (LCP)	Smooth Bore	Push-Pull	Solder	125 °C	-45 °C	Gold	6000 MHz	0.1 dB	Female Socket Jack	50 Ohms	Gold
Amphenol RF 920-508J-53P	Nickel	1	Brass	Board Edge End Launch	Brass	EFI HD	200	Solder	Polytetrafluoroethylene (PTFE)	Smooth Bore	Push-Pull	Solder	125 °C	-45 °C	Gold	6000 MHz	0.1 dB	Male Pin Plug	50 Ohms	Gold
Amphenol RF 920-503J-53P	Nickel	1	Brass	Through Hole	Brass	EFI HD	200	Solder	Liquid Crystal Polymer (LCP)	Smooth Bore	Push-Pull	Solder	125 °C	-45 °C	Gold	6000 MHz	0.1 dB	Male Pin Plug	50 Ohms	Gold
Amphenol RF 920-504J-52P	Nickel	1	Brass	Through Hole	Brass	EFI HD	50	Solder	Liquid Crystal Polymer (LCP)	Limited Detent	Push-Pull	Solder	125 °C	-45 °C	Gold	3 GHz	0.1 dB	Female Socket Jack	50 Ohms	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

EFI, HD Connector Jack, Female Socket 50 Ohms Through Hole Solder
