920-501J-53P
ActiveAmphenol RF

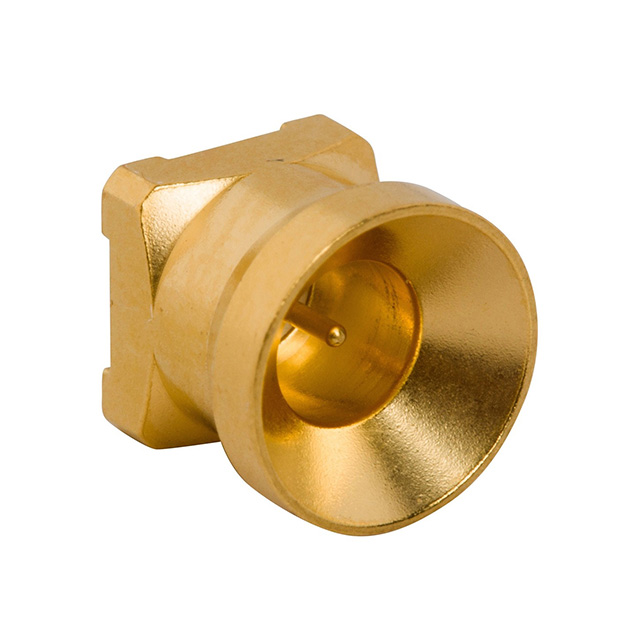

RF / COAXIAL CONNECTOR, MICROMINIATURE COAXIAL, STRAIGHT JACK, SURFACE MOUNT VERTICAL, 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
920-501J-53P
ActiveAmphenol RF
RF / COAXIAL CONNECTOR, MICROMINIATURE COAXIAL, STRAIGHT JACK, SURFACE MOUNT VERTICAL, 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 920-501J-53P |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | HD, EFI |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Push-Pull |
| Features | Smooth Bore |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Insertion Loss | 0.1 dB |
| Mating Cycles | 200 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -45 °C |
| Shield Termination | Solder |
920-50 Series
| Part | Body Finish | Number of Ports | Body Material | Mounting Type | Center Contact Material | Connector Style | Mating Cycles | Contact Termination | Dielectric Material | Features | Fastening Type | Shield Termination | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Frequency - Max [Max] | Insertion Loss | Connector Type | Impedance | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Nickel | 1 | Brass | Board Edge End Launch | Brass | EFI HD | 50 | Solder | Polytetrafluoroethylene (PTFE) | Limited Detent | Push-Pull | Solder | 125 °C | -45 °C | Gold | 6000 MHz | 0.1 dB | Female Socket Jack | 50 Ohms | Gold |
Amphenol RF | Nickel | 1 | Brass | Surface Mount | Brass | EFI HD | 50 | Solder | Liquid Crystal Polymer (LCP) | Limited Detent | Push-Pull | Solder | 125 °C | -45 °C | Gold | 6000 MHz | 0.1 dB | Female Socket Jack | 50 Ohms | Gold |
Amphenol RF | Nickel | 1 | Brass | Surface Mount | Brass | EFI HD | 200 | Solder | Liquid Crystal Polymer (LCP) | Smooth Bore | Push-Pull | Solder | 125 °C | -45 °C | Gold | 6000 MHz | 0.1 dB | Female Socket Jack | 50 Ohms | Gold |
Amphenol RF | Nickel | 1 | Brass | Board Edge End Launch | Brass | EFI HD | 200 | Solder | Polytetrafluoroethylene (PTFE) | Smooth Bore | Push-Pull | Solder | 125 °C | -45 °C | Gold | 6000 MHz | 0.1 dB | Male Pin Plug | 50 Ohms | Gold |
Amphenol RF | Nickel | 1 | Brass | Through Hole | Brass | EFI HD | 200 | Solder | Liquid Crystal Polymer (LCP) | Smooth Bore | Push-Pull | Solder | 125 °C | -45 °C | Gold | 6000 MHz | 0.1 dB | Male Pin Plug | 50 Ohms | Gold |
Amphenol RF | Nickel | 1 | Brass | Through Hole | Brass | EFI HD | 50 | Solder | Liquid Crystal Polymer (LCP) | Limited Detent | Push-Pull | Solder | 125 °C | -45 °C | Gold | 3 GHz | 0.1 dB | Female Socket Jack | 50 Ohms | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
920-50 Series
EFI, HD Connector Jack, Female Socket 50 Ohms Surface Mount Solder
