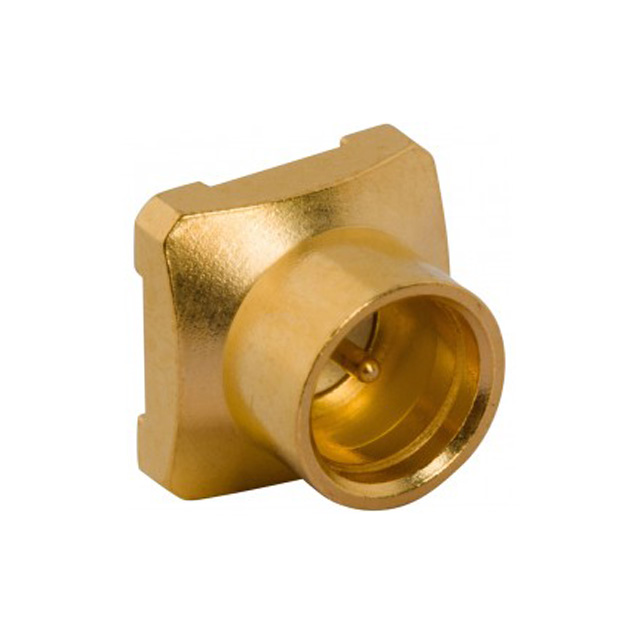

920-502J-52P
ActiveAmphenol RF
CONN HD-EFI JACK 50 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
920-502J-52P
ActiveAmphenol RF
CONN HD-EFI JACK 50 OHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 920-502J-52P |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | HD, EFI |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Push-Pull |
| Features | Limited Detent |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Insertion Loss | 0.1 dB |
| Mating Cycles | 50 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -45 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.07 | |
| 10 | $ 4.60 | |||
| 25 | $ 4.36 | |||
| 50 | $ 4.26 | |||
| 100 | $ 4.06 | |||
| 250 | $ 3.55 | |||
| 450 | $ 3.45 | |||
| 950 | $ 2.94 | |||
| 2400 | $ 2.74 | |||
Description
General part information
920-50 Series
EFI, HD Connector Jack, Female Socket 50 Ohms Surface Mount Solder
Documents
Technical documentation and resources
No documents available
