0194190017
ActiveMolex

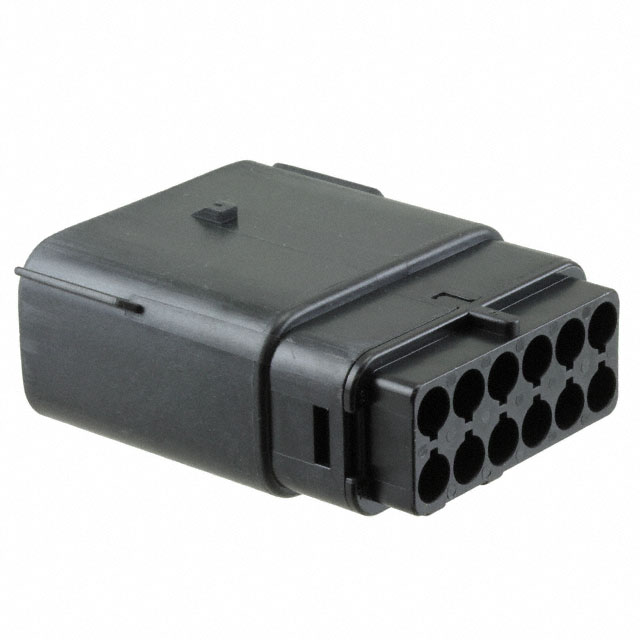

CONN PLUG HSG 12POS 5.84MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsMX150 Series
0194190017
ActiveMolex
CONN PLUG HSG 12POS 5.84MM
Deep-Dive with AI
DocumentsMX150 Series
Technical Specifications
Parameters and characteristics for this part
| Specification | 0194190017 |
|---|---|
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Blade |
| Fastening Type | Locking Ramp |
| Features | IP67 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5.84 mm |
| Pitch [x] | 0.23 in |
| Row Spacing [Max] | 0.236 in |
| Row Spacing [Max] | 6 mm |
019419 Series
| Part | Contact Type | Note | Number of Positions | Fastening Type | Contact Termination | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Mounting Type | Pitch [x] | Pitch [x] | Features | Row Spacing [Max] | Row Spacing [Max] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Male Blade | Contacts Not Included | 6 | Locking Ramp | Crimp | 2 | -40 °C | 120 °C | Plug | Free Hanging (In-Line) | 5.84 mm | 0.23 in | IP67 | |||
Molex | Male Blade | Contacts Not Included | 12 | Locking Ramp | Crimp | 2 | -40 °C | 120 °C | Plug | Free Hanging (In-Line) | 5.84 mm | 0.23 in | IP67 | 0.236 in | 6 mm | |
Molex | Male Blade | Contacts Not Included | Locking Ramp | Crimp | 2 | -40 °C | 120 °C | Plug | Free Hanging (In-Line) | 5.84 mm | 0.23 in | IP67 | 0.236 in | 6 mm | 16 | |
Molex | Male Blade | Contacts Not Included | 2 | Locking Ramp | Crimp | 1 | -40 °C | 120 °C | Plug | Free Hanging (In-Line) | 5.84 mm | 0.23 in | IP67 | |||
Molex | Male Blade | Contacts Not Included | Locking Ramp | Crimp | 2 | -40 °C | 120 °C | Plug | Free Hanging (In-Line) | 5.84 mm | 0.23 in | IP67 | 0.236 in | 6 mm | 16 | |
Molex | Male Blade | Contacts Not Included | 12 | Locking Ramp | Crimp | 2 | -40 °C | 120 °C | Plug | Free Hanging (In-Line) | 5.84 mm | 0.23 in | IP67 | 0.236 in | 6 mm | |
Molex | Male Blade | Contacts Not Included | 8 | Locking Ramp | Crimp | 2 | -40 °C | 120 °C | Plug | Free Hanging (In-Line) | 5.84 mm | 0.23 in | IP67 | 0.236 in | 6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.47 | |
| 10 | $ 9.97 | |||
| 144 | $ 8.23 | |||
| 1008 | $ 6.83 | |||
Description
General part information
019419 Series
12 Rectangular Connectors - Housings Plug 0.230" (5.84mm)
