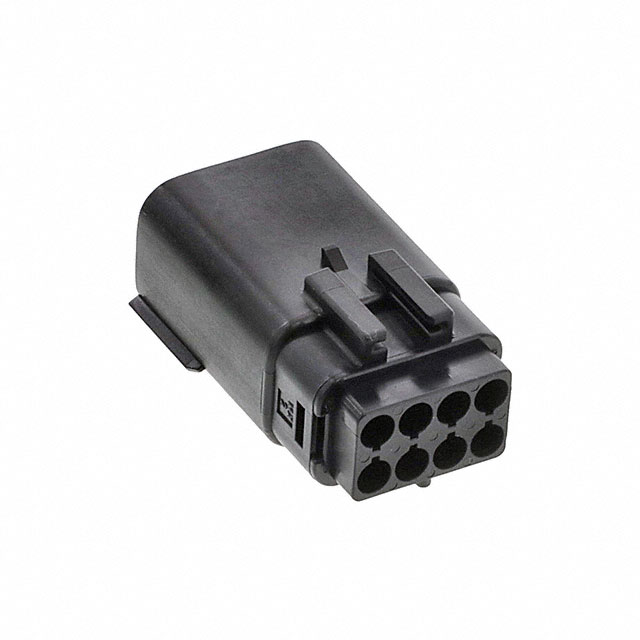

0194190001

Active

Molex

CONN PLUG HSG 8POS 5.84MM

Search across all available documentation for this part.

Active

Molex

CONN PLUG HSG 8POS 5.84MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Note	Number of Positions	Fastening Type	Contact Termination	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Features	Row Spacing [Max]	Row Spacing [Max]	Number of Positions
Molex 0194190012	Male Blade	Contacts Not Included	6	Locking Ramp	Crimp	2	-40 °C	120 °C	Plug	Free Hanging (In-Line)	5.84 mm	0.23 in	IP67
Molex 0194190018	Male Blade	Contacts Not Included	12	Locking Ramp	Crimp	2	-40 °C	120 °C	Plug	Free Hanging (In-Line)	5.84 mm	0.23 in	IP67	0.236 in	6 mm
Molex 0194190020	Male Blade	Contacts Not Included		Locking Ramp	Crimp	2	-40 °C	120 °C	Plug	Free Hanging (In-Line)	5.84 mm	0.23 in	IP67	0.236 in	6 mm	16
Molex 0194190007	Male Blade	Contacts Not Included	2	Locking Ramp	Crimp	1	-40 °C	120 °C	Plug	Free Hanging (In-Line)	5.84 mm	0.23 in	IP67
Molex 0194190021	Male Blade	Contacts Not Included		Locking Ramp	Crimp	2	-40 °C	120 °C	Plug	Free Hanging (In-Line)	5.84 mm	0.23 in	IP67	0.236 in	6 mm	16
Molex 0194190017	Male Blade	Contacts Not Included	12	Locking Ramp	Crimp	2	-40 °C	120 °C	Plug	Free Hanging (In-Line)	5.84 mm	0.23 in	IP67	0.236 in	6 mm
Molex 0194190001	Male Blade	Contacts Not Included	8	Locking Ramp	Crimp	2	-40 °C	120 °C	Plug	Free Hanging (In-Line)	5.84 mm	0.23 in	IP67	0.236 in	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Rectangular Connectors - Housings Plug 0.230" (5.84mm)
