0194190018

Active

Molex

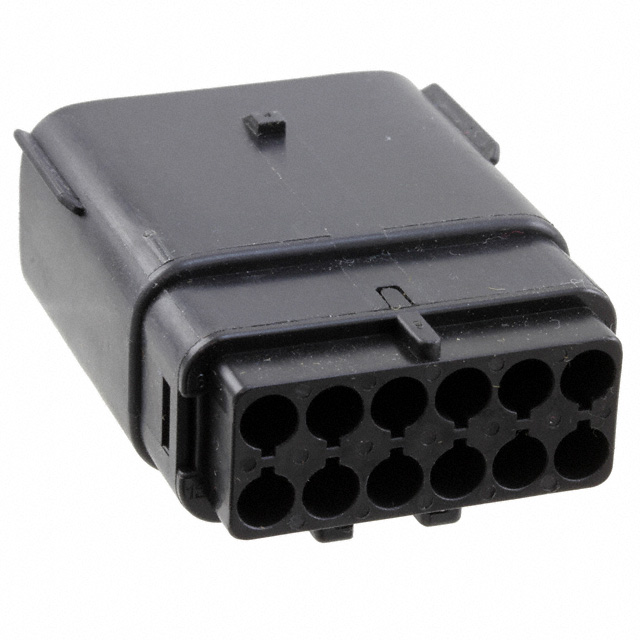

CONN HOUSING PL 12 POS 5.84MM CRIMP ST CABLE MOUNT MX150L™ BAG

Search across all available documentation for this part.

Active

Molex

CONN HOUSING PL 12 POS 5.84MM CRIMP ST CABLE MOUNT MX150L™ BAG

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Note	Number of Positions	Fastening Type	Contact Termination	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Pitch [x]	Pitch [x]	Features	Row Spacing [Max]	Row Spacing [Max]	Number of Positions
Molex 0194190012	Male Blade	Contacts Not Included	6	Locking Ramp	Crimp	2	-40 °C	120 °C	Plug	Free Hanging (In-Line)	5.84 mm	0.23 in	IP67
Molex 0194190018	Male Blade	Contacts Not Included	12	Locking Ramp	Crimp	2	-40 °C	120 °C	Plug	Free Hanging (In-Line)	5.84 mm	0.23 in	IP67	0.236 in	6 mm
Molex 0194190020	Male Blade	Contacts Not Included		Locking Ramp	Crimp	2	-40 °C	120 °C	Plug	Free Hanging (In-Line)	5.84 mm	0.23 in	IP67	0.236 in	6 mm	16
Molex 0194190007	Male Blade	Contacts Not Included	2	Locking Ramp	Crimp	1	-40 °C	120 °C	Plug	Free Hanging (In-Line)	5.84 mm	0.23 in	IP67
Molex 0194190021	Male Blade	Contacts Not Included		Locking Ramp	Crimp	2	-40 °C	120 °C	Plug	Free Hanging (In-Line)	5.84 mm	0.23 in	IP67	0.236 in	6 mm	16
Molex 0194190017	Male Blade	Contacts Not Included	12	Locking Ramp	Crimp	2	-40 °C	120 °C	Plug	Free Hanging (In-Line)	5.84 mm	0.23 in	IP67	0.236 in	6 mm
Molex 0194190001	Male Blade	Contacts Not Included	8	Locking Ramp	Crimp	2	-40 °C	120 °C	Plug	Free Hanging (In-Line)	5.84 mm	0.23 in	IP67	0.236 in	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Plug 0.230" (5.84mm)
