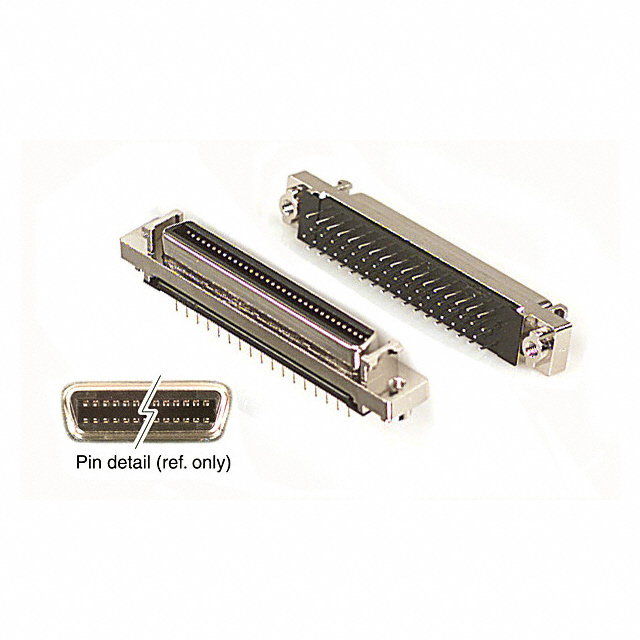

DX20M-68S(50)
ActiveHirose Electric USA, Inc.
1.27MM PITCH HIGH DENSITY I/O CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DX20M-68S(50)
ActiveHirose Electric USA, Inc.
1.27MM PITCH HIGH DENSITY I/O CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DX20M-68S(50) |
|---|---|
| Connector Style | Outer Shroud Contacts |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell |
| Flange Feature | 2.6 M |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 68 |
| Number of Rows | 2 |
| Termination | Solder |
| Type | Miniature High Density (HD) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DX20M Series
68 Position Receptacle Connector Miniature High Density (HD) Panel Mount, Through Hole Solder
