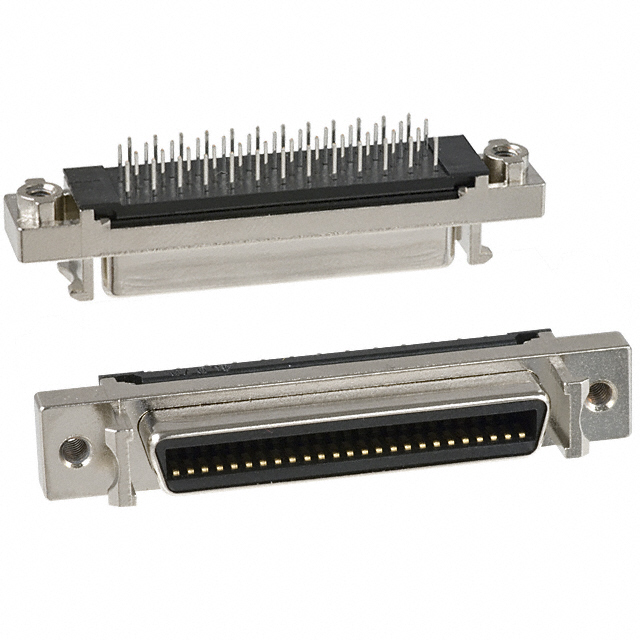

DX20M-50S(50)
ActiveHirose Electric USA, Inc.
CONN MINI HD RCPT 50P PCB SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DX20M-50S(50)
ActiveHirose Electric USA, Inc.
CONN MINI HD RCPT 50P PCB SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DX20M-50S(50) |
|---|---|
| Connector Style | Outer Shroud Contacts |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell |
| Flange Feature | 2.6 M |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Termination | Solder |
| Type | Miniature High Density (HD) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 15.11 | |
| 10 | $ 11.62 | |||
| 25 | $ 10.50 | |||
| 40 | $ 9.98 | |||
| 80 | $ 9.28 | |||
| 230 | $ 8.33 | |||
| 440 | $ 7.82 | |||
| 945 | $ 7.27 | |||
Description
General part information
DX20M Series
50 Position Receptacle Connector Miniature High Density (HD) Panel Mount, Through Hole Solder
