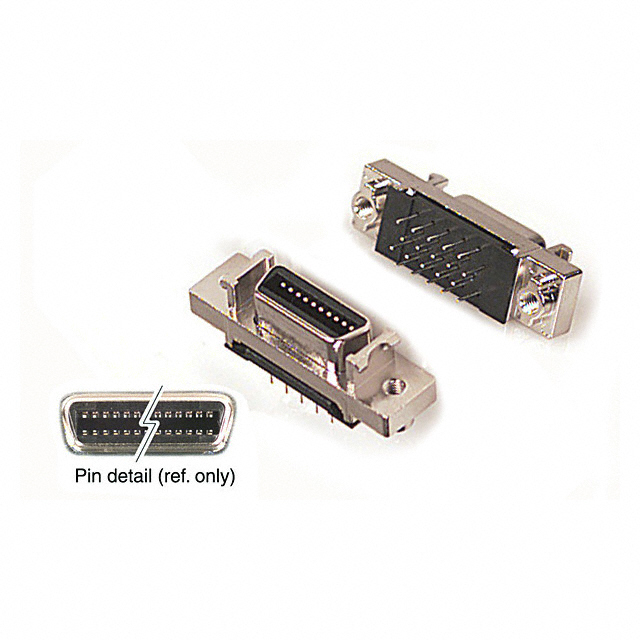

DX20M-20S(50)
ActiveHirose Electric USA, Inc.
CONN MINI HD RCPT 20P PCB SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DX20M-20S(50)
ActiveHirose Electric USA, Inc.
CONN MINI HD RCPT 20P PCB SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DX20M-20S(50) |
|---|---|
| Connector Style | Outer Shroud Contacts |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell |
| Flange Feature | 2.6 M |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Termination | Solder |
| Type | Miniature High Density (HD) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.59 | |
| 10 | $ 9.53 | |||
| 25 | $ 8.98 | |||
| 60 | $ 8.75 | |||
| 120 | $ 8.52 | |||
| 240 | $ 7.60 | |||
| 480 | $ 7.14 | |||
| 960 | $ 6.31 | |||
Description
General part information
DX20M Series
20 Position Receptacle Connector Miniature High Density (HD) Panel Mount, Through Hole Solder
