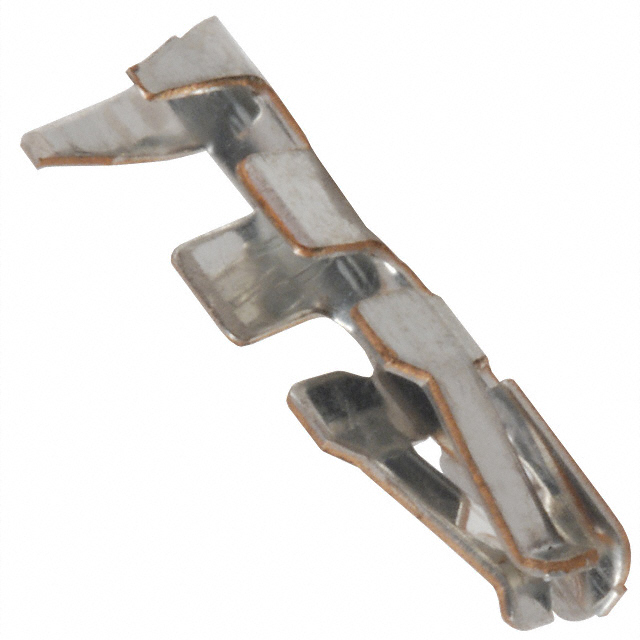

DF1B-2022SC

Active

Hirose Electric USA, Inc.

HEADERS & WIRE HOUSINGS 20-22AWG SKT CONTACT TIN PLATING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DF1B Series Datasheet

DF1B-2022SC

Active

Hirose Electric USA, Inc.

HEADERS & WIRE HOUSINGS 20-22AWG SKT CONTACT TIN PLATING

Deep-Dive with AI

DocumentsDatasheet DF1B Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF1B-2022SC

Contact Finish	Tin
Contact Termination	Crimp
Pin or Socket	Socket
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	20 AWG

DF1B Series

Headers & Wire Housings 2.5MM SINGLE ROW SKT 7P HOUSING

...

Part	Contact Type	Connector Type	Contact Termination	Fastening Type	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Number of Positions	Number of Rows	Insulation Material	Note	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Finish - Mating	Mated Stacking Heights	Features	Contact Material	Material Flammability Rating	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Voltage Rating	Shrouding	Termination	Contact Length - Mating	Contact Length - Mating	Style	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pin or Socket	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish - Post
Hirose Electric USA, Inc. DF1B-2EP-2.5RC	Male Pin	Plug	Crimp IDC	Latch Lock	Free Hanging (In-Line)	White	-35 °C	85 °C	0.098 in	2.5 mm	2	1	Nylon Polyamide (PA)	Contacts Not Included
Hirose Electric USA, Inc. DF1B-12DP-2.5DSA(01)	Male Pin	Header		Push-Pull	Through Hole		-35 °C	85 °C			12	2	Nylon Polyamide (PA)		Square	2.5 mm	0.098 in	3.6 mm	0.142 in	White	Gold	14 mm	Keying Slot	Brass	UL94 V-0	All	0.417 "	10.6 mm	250 VDC	Shrouded - 4 Wall	Solder	0.177 in	4.5 mm	Board to Cable/Wire	0.098 in	2.5 mm	9.5 mm	0.374 in	0.203 Ám	8 Áin
Hirose Electric USA, Inc. DF1B-15P-2.5DSA	Male Pin	Header		Push-Pull	Through Hole		-35 °C	85 °C			15	1	Nylon Polyamide (PA)		Square	2.5 mm	0.098 in	3.6 mm	0.142 in	White		14 mm	Keying Slot	Brass	UL94 V-0	All	0.417 "	10.6 mm	250 VDC	Shrouded - 4 Wall	Solder	0.177 in	4.5 mm	Board to Cable/Wire			9.5 mm	0.374 in
Hirose Electric USA, Inc. DF1B-2022SC			Crimp																																						Socket	Tin	20 AWG	22 AWG
Hirose Electric USA, Inc. DF1B-34DP-2.5DSA	Male Pin	Header		Push-Pull	Through Hole		-35 °C	85 °C			34	2	Nylon Polyamide (PA)		Square	2.5 mm	0.098 in	3.6 mm	0.142 in	White		14 mm	Keying Slot	Brass	UL94 V-0	All	0.417 "	10.6 mm	250 VDC	Shrouded - 4 Wall	Solder	0.177 in	4.5 mm	Board to Cable/Wire	0.098 in	2.5 mm	9.5 mm	0.374 in							Tin
Hirose Electric USA, Inc. DF1B-13ES-2.5RC	Female Socket	Receptacle	Crimp IDC	Locking Ramp	Panel Mount Snap-In	White	-35 °C	85 °C	0.098 in	2.5 mm	13	1	Nylon Polyamide (PA)	Contacts Not Included
Hirose Electric USA, Inc. DF1B-3EP-2.5RC	Male Pin	Plug	Crimp IDC	Latch Lock	Free Hanging (In-Line)	White	-35 °C	85 °C	0.098 in	2.5 mm		1	Nylon Polyamide (PA)	Contacts Not Included
Hirose Electric USA, Inc. DF1B-4P-2.5DS(01)	Male Pin	Header		Push-Pull	Through Hole Right Angle		-35 °C	85 °C			4	1	Nylon Polyamide (PA)		Square	2.5 mm	0.098 in	3.6 mm	0.142 in	White	Gold		Keying Slot	Brass	UL94 V-0	All			250 VDC	Shrouded - 4 Wall	Solder	0.177 in	4.5 mm	Board to Cable/Wire			5.69 mm	0.224 in	0.203 Ám	8 Áin
Hirose Electric USA, Inc. DF1B-20S-2.5R	Female Socket	Receptacle	Crimp IDC		Free Hanging (In-Line)	White	-35 °C	85 °C	0.098 in	2.5 mm	20	1	Nylon Polyamide (PA)	Contacts Not Included
Hirose Electric USA, Inc. DF1B-2022PCFB			Crimp																																						Pin	Gold	20 AWG	22 AWG
