DF1B-13ES-2.5RC

LTB

Hirose Electric USA, Inc.

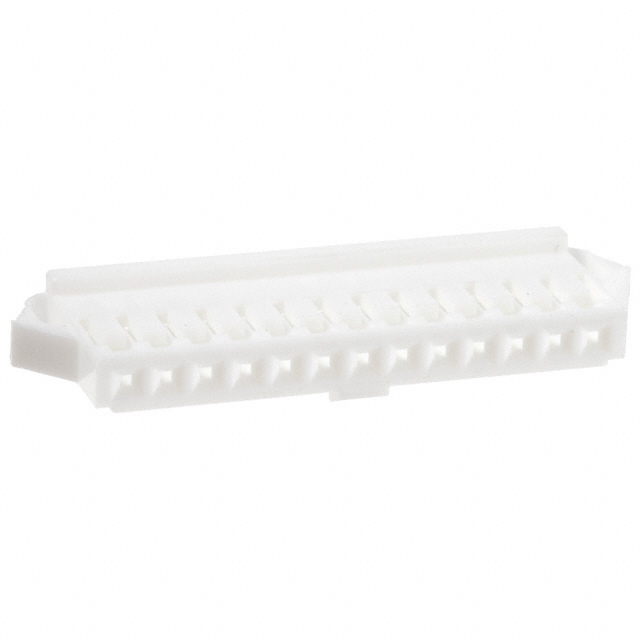

CONN RCPT HSG 13POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF1B-13ES-2.5RC

LTB

Hirose Electric USA, Inc.

CONN RCPT HSG 13POS 2.50MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF1B-13ES-2.5RC

Color	White
Connector Type	Receptacle
Contact Termination	Crimp, IDC
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	13
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

DF1B Series

Headers & Wire Housings 2.5MM SINGLE ROW SKT 7P HOUSING

...

Part	Contact Type	Connector Type	Contact Termination	Fastening Type	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Number of Positions	Number of Rows	Insulation Material	Note	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Finish - Mating	Mated Stacking Heights	Features	Contact Material	Material Flammability Rating	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Voltage Rating	Shrouding	Termination	Contact Length - Mating	Contact Length - Mating	Style	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pin or Socket	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish - Post
Hirose Electric USA, Inc. DF1B-2EP-2.5RC	Male Pin	Plug	Crimp IDC	Latch Lock	Free Hanging (In-Line)	White	-35 °C	85 °C	0.098 in	2.5 mm	2	1	Nylon Polyamide (PA)	Contacts Not Included
Hirose Electric USA, Inc. DF1B-12DP-2.5DSA(01)	Male Pin	Header		Push-Pull	Through Hole		-35 °C	85 °C			12	2	Nylon Polyamide (PA)		Square	2.5 mm	0.098 in	3.6 mm	0.142 in	White	Gold	14 mm	Keying Slot	Brass	UL94 V-0	All	0.417 "	10.6 mm	250 VDC	Shrouded - 4 Wall	Solder	0.177 in	4.5 mm	Board to Cable/Wire	0.098 in	2.5 mm	9.5 mm	0.374 in	0.203 Ám	8 Áin
Hirose Electric USA, Inc. DF1B-15P-2.5DSA	Male Pin	Header		Push-Pull	Through Hole		-35 °C	85 °C			15	1	Nylon Polyamide (PA)		Square	2.5 mm	0.098 in	3.6 mm	0.142 in	White		14 mm	Keying Slot	Brass	UL94 V-0	All	0.417 "	10.6 mm	250 VDC	Shrouded - 4 Wall	Solder	0.177 in	4.5 mm	Board to Cable/Wire			9.5 mm	0.374 in
Hirose Electric USA, Inc. DF1B-2022SC			Crimp																																						Socket	Tin	20 AWG	22 AWG
Hirose Electric USA, Inc. DF1B-34DP-2.5DSA	Male Pin	Header		Push-Pull	Through Hole		-35 °C	85 °C			34	2	Nylon Polyamide (PA)		Square	2.5 mm	0.098 in	3.6 mm	0.142 in	White		14 mm	Keying Slot	Brass	UL94 V-0	All	0.417 "	10.6 mm	250 VDC	Shrouded - 4 Wall	Solder	0.177 in	4.5 mm	Board to Cable/Wire	0.098 in	2.5 mm	9.5 mm	0.374 in							Tin
Hirose Electric USA, Inc. DF1B-13ES-2.5RC	Female Socket	Receptacle	Crimp IDC	Locking Ramp	Panel Mount Snap-In	White	-35 °C	85 °C	0.098 in	2.5 mm	13	1	Nylon Polyamide (PA)	Contacts Not Included
Hirose Electric USA, Inc. DF1B-3EP-2.5RC	Male Pin	Plug	Crimp IDC	Latch Lock	Free Hanging (In-Line)	White	-35 °C	85 °C	0.098 in	2.5 mm		1	Nylon Polyamide (PA)	Contacts Not Included
Hirose Electric USA, Inc. DF1B-4P-2.5DS(01)	Male Pin	Header		Push-Pull	Through Hole Right Angle		-35 °C	85 °C			4	1	Nylon Polyamide (PA)		Square	2.5 mm	0.098 in	3.6 mm	0.142 in	White	Gold		Keying Slot	Brass	UL94 V-0	All			250 VDC	Shrouded - 4 Wall	Solder	0.177 in	4.5 mm	Board to Cable/Wire			5.69 mm	0.224 in	0.203 Ám	8 Áin
Hirose Electric USA, Inc. DF1B-20S-2.5R	Female Socket	Receptacle	Crimp IDC		Free Hanging (In-Line)	White	-35 °C	85 °C	0.098 in	2.5 mm	20	1	Nylon Polyamide (PA)	Contacts Not Included
Hirose Electric USA, Inc. DF1B-2022PCFB			Crimp																																						Pin	Gold	20 AWG	22 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.49
		10	$ 0.43
		25	$ 0.39
		50	$ 0.37

Description

General part information

DF1B Series

Headers & Wire Housings 2.5MM SINGLE ROW SKT 7P HOUSING
