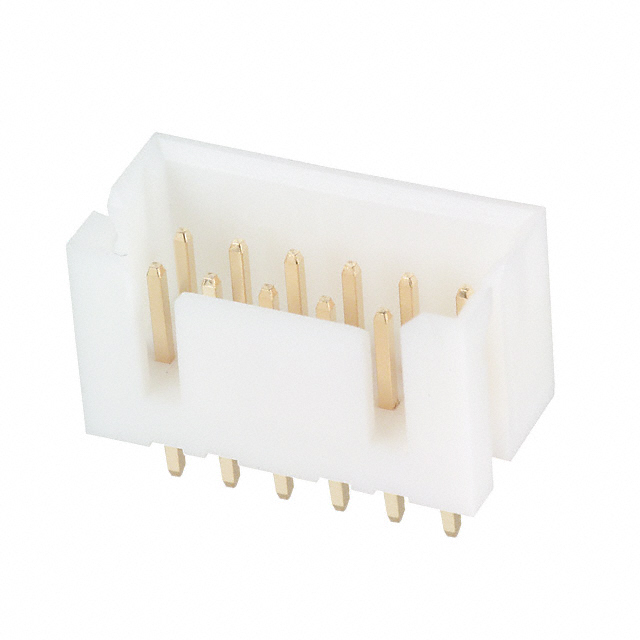

DF1B-12DP-2.5DSA(01)
ActiveHirose Electric USA, Inc.
CONN HEADER VERT 12POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DF1B-12DP-2.5DSA(01)
ActiveHirose Electric USA, Inc.
CONN HEADER VERT 12POS 2.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF1B-12DP-2.5DSA(01) |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Length - Mating | 0.177 in |
| Contact Length - Mating | 4.5 mm |
| Contact Length - Post | 3.6 mm |
| Contact Length - Post | 0.142 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Keying Slot |
| Insulation Color | White |
| Insulation Height | 9.5 mm |
| Insulation Height | 0.374 in |
| Insulation Material | Polyamide (PA), Nylon |
| Mated Stacking Heights | 14 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -35 °C |
| Overall Contact Length | 0.417 " |
| Overall Contact Length | 10.6 mm |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Row Spacing - Mating | 0.098 in |
| Row Spacing - Mating | 2.5 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
DF1B Series
Headers & Wire Housings 2.5MM SINGLE ROW SKT 7P HOUSING
...
| Part | Contact Type | Connector Type | Contact Termination | Fastening Type | Mounting Type | Color | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Number of Positions | Number of Rows | Insulation Material | Note | Contact Shape | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Insulation Color | Contact Finish - Mating | Mated Stacking Heights | Features | Contact Material | Material Flammability Rating | Number of Positions Loaded | Overall Contact Length | Overall Contact Length | Voltage Rating | Shrouding | Termination | Contact Length - Mating | Contact Length - Mating | Style | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pin or Socket | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Male Pin | Plug | Crimp IDC | Latch Lock | Free Hanging (In-Line) | White | -35 °C | 85 °C | 0.098 in | 2.5 mm | 2 | 1 | Nylon Polyamide (PA) | Contacts Not Included | |||||||||||||||||||||||||||||||
Hirose Electric USA, Inc. | Male Pin | Header | Push-Pull | Through Hole | -35 °C | 85 °C | 12 | 2 | Nylon Polyamide (PA) | Square | 2.5 mm | 0.098 in | 3.6 mm | 0.142 in | White | Gold | 14 mm | Keying Slot | Brass | UL94 V-0 | All | 0.417 " | 10.6 mm | 250 VDC | Shrouded - 4 Wall | Solder | 0.177 in | 4.5 mm | Board to Cable/Wire | 0.098 in | 2.5 mm | 9.5 mm | 0.374 in | 0.203 Ám | 8 Áin | ||||||||||
Hirose Electric USA, Inc. | Male Pin | Header | Push-Pull | Through Hole | -35 °C | 85 °C | 15 | 1 | Nylon Polyamide (PA) | Square | 2.5 mm | 0.098 in | 3.6 mm | 0.142 in | White | 14 mm | Keying Slot | Brass | UL94 V-0 | All | 0.417 " | 10.6 mm | 250 VDC | Shrouded - 4 Wall | Solder | 0.177 in | 4.5 mm | Board to Cable/Wire | 9.5 mm | 0.374 in | |||||||||||||||
Hirose Electric USA, Inc. | Crimp | Socket | Tin | 20 AWG | 22 AWG | ||||||||||||||||||||||||||||||||||||||||
Hirose Electric USA, Inc. | Male Pin | Header | Push-Pull | Through Hole | -35 °C | 85 °C | 34 | 2 | Nylon Polyamide (PA) | Square | 2.5 mm | 0.098 in | 3.6 mm | 0.142 in | White | 14 mm | Keying Slot | Brass | UL94 V-0 | All | 0.417 " | 10.6 mm | 250 VDC | Shrouded - 4 Wall | Solder | 0.177 in | 4.5 mm | Board to Cable/Wire | 0.098 in | 2.5 mm | 9.5 mm | 0.374 in | Tin | ||||||||||||
Hirose Electric USA, Inc. | Female Socket | Receptacle | Crimp IDC | Locking Ramp | Panel Mount Snap-In | White | -35 °C | 85 °C | 0.098 in | 2.5 mm | 13 | 1 | Nylon Polyamide (PA) | Contacts Not Included | |||||||||||||||||||||||||||||||
Hirose Electric USA, Inc. | Male Pin | Plug | Crimp IDC | Latch Lock | Free Hanging (In-Line) | White | -35 °C | 85 °C | 0.098 in | 2.5 mm | 1 | Nylon Polyamide (PA) | Contacts Not Included | ||||||||||||||||||||||||||||||||
Hirose Electric USA, Inc. | Male Pin | Header | Push-Pull | Through Hole Right Angle | -35 °C | 85 °C | 4 | 1 | Nylon Polyamide (PA) | Square | 2.5 mm | 0.098 in | 3.6 mm | 0.142 in | White | Gold | Keying Slot | Brass | UL94 V-0 | All | 250 VDC | Shrouded - 4 Wall | Solder | 0.177 in | 4.5 mm | Board to Cable/Wire | 5.69 mm | 0.224 in | 0.203 Ám | 8 Áin | |||||||||||||||
Hirose Electric USA, Inc. | Female Socket | Receptacle | Crimp IDC | Free Hanging (In-Line) | White | -35 °C | 85 °C | 0.098 in | 2.5 mm | 20 | 1 | Nylon Polyamide (PA) | Contacts Not Included | ||||||||||||||||||||||||||||||||
Hirose Electric USA, Inc. | Crimp | Pin | Gold | 20 AWG | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.09 | |
| 10 | $ 0.83 | |||
| 100 | $ 0.64 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.50 | |||
| 5000 | $ 0.42 | |||
| 10000 | $ 0.39 | |||
Description
General part information
DF1B Series
Headers & Wire Housings 2.5MM SINGLE ROW SKT 7P HOUSING
