SNP3210H4

Active

HELLERMANNTYTON

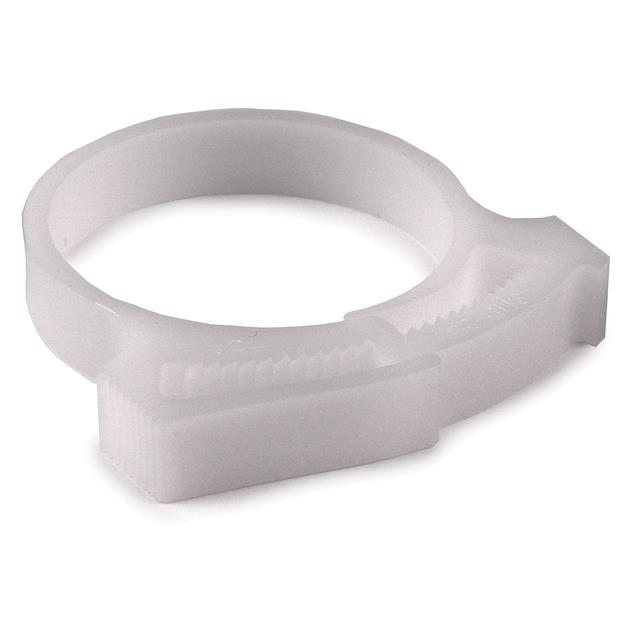

SNAPPER HOSE CLAMP, 1.21" 1.38" BUNDLE DIAMETER, POM, WHITE, 500/PKG

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SNAPPER HOSE CLAMP, 1.21" 1.38" BUNDLE DIAMETER, POM, WHITE, 500/PKG

Technical Specifications

Parameters and characteristics for this part

Specification	SNP3210H4

Color	White
Length [Max]	43.79 mm
Length [Max]	1.724 "
Length [Min]	27.03 mm
Length [Min]	1.064 "
Material	Polyacetal (POM)
Material Flammability Rating	UL94 HB
Material Thickness	0.068 in
Material Thickness	1.73 mm
Opening Size [Max]	35.69 mm
Opening Size [Max]	1.405 in
Opening Size [Min]	1.218 in
Opening Size [Min]	30.94 mm
Type	Clamp, Hose
Type Attributes	Push-Fit

Conduit Fittings & Accessories SNP-34 HOSE CLAMP BLK HEAT

Part	Color	Width	Width	Features	Type Attributes	Material Flammability Rating	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Length [Max]	Length [Min]	Material Thickness	Material Thickness	Material	Type	Width [y]	Width [y]	Opening Size [Max]	Opening Size [Min]	Length [Min]	Length [Max]	Opening Size [Max]	Opening Size [Min]
HELLERMANNTYTON SNP34GHS0K2	Black	0.295 in	7.49 mm	Heat Stabilized Impact Resistant	Push-Fit	UL94 HB	40.64 mm	1.367 in	34.72 mm	1.6 in	1.986 " 50.44 mm	1.198 " 30.43 mm	0.069 in	1.75 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	Clamp Hose
HELLERMANNTYTON SNP18AGHS0C2	Black			Heat Stabilized Impact Resistant	Push-Fit	UL94 HB		0.802 in		0.94 in	1.418 in	0.958 in	0.07 in	1.78 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	Clamp Hose	6.1 mm	0.24 in	23.88 mm	20.37 mm	24.33 mm	36.02 mm
HELLERMANNTYTON SNP3210H4	White				Push-Fit	UL94 HB					1.724 "	1.064 "	0.068 in	1.73 mm	Polyacetal (POM)	Clamp Hose			35.69 mm	30.94 mm	27.03 mm	43.79 mm	1.405 in	1.218 in
HELLERMANNTYTON SNP3210K2	White				Push-Fit	UL94 HB					1.724 "	1.064 "	0.068 in	1.73 mm	Polyacetal (POM)	Clamp Hose			35.69 mm	30.94 mm	27.03 mm	43.79 mm	1.405 in	1.218 in
HELLERMANNTYTON SNP18A10M4	White				Push-Fit	UL94 HB	23.7 mm	0.79 in	20.07 mm	0.933 in	1.391 "	0.94 "	0.067 in	1.7 mm	Polyacetal (POM)	Clamp Hose					23.88 mm	35.33 mm
HELLERMANNTYTON SNP18AGHS0M4	Black			Heat Stabilized Impact Resistant	Push-Fit	UL94 HB		0.802 in		0.94 in	1.418 in	0.958 in	0.07 in	1.78 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	Clamp Hose	6.1 mm	0.24 in	23.88 mm	20.37 mm	24.33 mm	36.02 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
