SNP18A10M4

Active

HELLERMANNTYTON

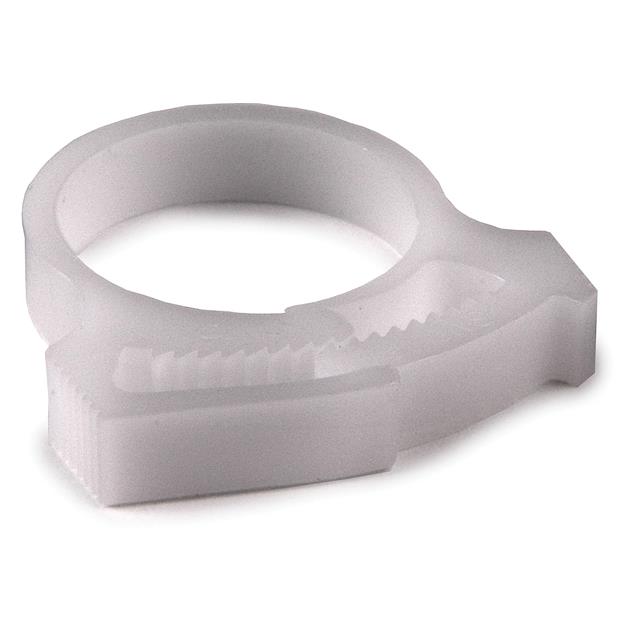

SNAPPER HOSE CLAMP, .78" .93" BUNDLE DIAMETER, POM, WHITE, 1000/PKG

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SNAPPER HOSE CLAMP, .78" .93" BUNDLE DIAMETER, POM, WHITE, 1000/PKG

Technical Specifications

Parameters and characteristics for this part

Specification	SNP18A10M4

Color	White
Length [Max]	1.391 "
Length [Max]	35.33 mm
Length [Min]	23.88 mm
Length [Min]	0.94 "
Material	Polyacetal (POM)
Material Flammability Rating	UL94 HB
Material Thickness	1.7 mm
Material Thickness	0.067 in
Opening Size [Max] [z]	23.7 mm
Opening Size [Max] [z]	0.933 in
Opening Size [Min] [z]	20.07 mm
Opening Size [Min] [z]	0.79 in
Type	Clamp, Hose
Type Attributes	Push-Fit

Conduit Fittings & Accessories SNP-34 HOSE CLAMP BLK HEAT

Part	Color	Width	Width	Features	Type Attributes	Material Flammability Rating	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Length [Max]	Length [Min]	Material Thickness	Material Thickness	Material	Type	Width [y]	Width [y]	Opening Size [Max]	Opening Size [Min]	Length [Min]	Length [Max]	Opening Size [Max]	Opening Size [Min]
HELLERMANNTYTON SNP34GHS0K2	Black	0.295 in	7.49 mm	Heat Stabilized Impact Resistant	Push-Fit	UL94 HB	40.64 mm	1.367 in	34.72 mm	1.6 in	1.986 " 50.44 mm	1.198 " 30.43 mm	0.069 in	1.75 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	Clamp Hose
HELLERMANNTYTON SNP18AGHS0C2	Black			Heat Stabilized Impact Resistant	Push-Fit	UL94 HB		0.802 in		0.94 in	1.418 in	0.958 in	0.07 in	1.78 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	Clamp Hose	6.1 mm	0.24 in	23.88 mm	20.37 mm	24.33 mm	36.02 mm
HELLERMANNTYTON SNP3210H4	White				Push-Fit	UL94 HB					1.724 "	1.064 "	0.068 in	1.73 mm	Polyacetal (POM)	Clamp Hose			35.69 mm	30.94 mm	27.03 mm	43.79 mm	1.405 in	1.218 in
HELLERMANNTYTON SNP3210K2	White				Push-Fit	UL94 HB					1.724 "	1.064 "	0.068 in	1.73 mm	Polyacetal (POM)	Clamp Hose			35.69 mm	30.94 mm	27.03 mm	43.79 mm	1.405 in	1.218 in
HELLERMANNTYTON SNP18A10M4	White				Push-Fit	UL94 HB	23.7 mm	0.79 in	20.07 mm	0.933 in	1.391 "	0.94 "	0.067 in	1.7 mm	Polyacetal (POM)	Clamp Hose					23.88 mm	35.33 mm
HELLERMANNTYTON SNP18AGHS0M4	Black			Heat Stabilized Impact Resistant	Push-Fit	UL94 HB		0.802 in		0.94 in	1.418 in	0.958 in	0.07 in	1.78 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	Clamp Hose	6.1 mm	0.24 in	23.88 mm	20.37 mm	24.33 mm	36.02 mm
