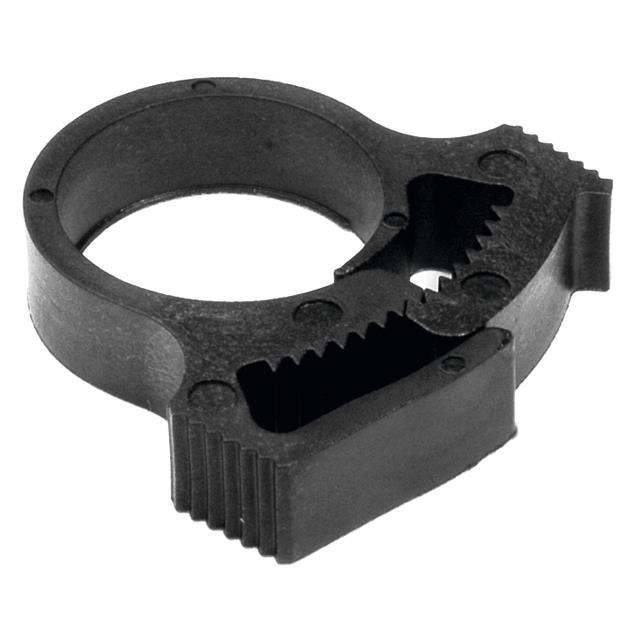

SNP18AGHS0C2

Active

HELLERMANNTYTON

CBL CLIP HOSE BLACK

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP HOSE BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	SNP18AGHS0C2

Color	Black
Features	Impact Resistant, Heat Stabilized
Length [Max]	1.418 in
Length [Max]	36.02 mm
Length [Min]	24.33 mm
Length [Min]	0.958 in
Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 HB
Material Thickness	0.07 in
Material Thickness	1.78 mm
Opening Size [Max]	23.88 mm
Opening Size [Max] [z]	0.94 in
Opening Size [Min]	20.37 mm
Opening Size [Min] [z]	0.802 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width [y]	6.1 mm
Width [y]	0.24 in

Conduit Fittings & Accessories SNP-34 HOSE CLAMP BLK HEAT

Part	Color	Width	Width	Features	Type Attributes	Material Flammability Rating	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Length [Max]	Length [Min]	Material Thickness	Material Thickness	Material	Type	Width [y]	Width [y]	Opening Size [Max]	Opening Size [Min]	Length [Min]	Length [Max]	Opening Size [Max]	Opening Size [Min]
HELLERMANNTYTON SNP34GHS0K2	Black	0.295 in	7.49 mm	Heat Stabilized Impact Resistant	Push-Fit	UL94 HB	40.64 mm	1.367 in	34.72 mm	1.6 in	1.986 " 50.44 mm	1.198 " 30.43 mm	0.069 in	1.75 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	Clamp Hose
HELLERMANNTYTON SNP18AGHS0C2	Black			Heat Stabilized Impact Resistant	Push-Fit	UL94 HB		0.802 in		0.94 in	1.418 in	0.958 in	0.07 in	1.78 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	Clamp Hose	6.1 mm	0.24 in	23.88 mm	20.37 mm	24.33 mm	36.02 mm
HELLERMANNTYTON SNP3210H4	White				Push-Fit	UL94 HB					1.724 "	1.064 "	0.068 in	1.73 mm	Polyacetal (POM)	Clamp Hose			35.69 mm	30.94 mm	27.03 mm	43.79 mm	1.405 in	1.218 in
HELLERMANNTYTON SNP3210K2	White				Push-Fit	UL94 HB					1.724 "	1.064 "	0.068 in	1.73 mm	Polyacetal (POM)	Clamp Hose			35.69 mm	30.94 mm	27.03 mm	43.79 mm	1.405 in	1.218 in
HELLERMANNTYTON SNP18A10M4	White				Push-Fit	UL94 HB	23.7 mm	0.79 in	20.07 mm	0.933 in	1.391 "	0.94 "	0.067 in	1.7 mm	Polyacetal (POM)	Clamp Hose					23.88 mm	35.33 mm
HELLERMANNTYTON SNP18AGHS0M4	Black			Heat Stabilized Impact Resistant	Push-Fit	UL94 HB		0.802 in		0.94 in	1.418 in	0.958 in	0.07 in	1.78 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	Clamp Hose	6.1 mm	0.24 in	23.88 mm	20.37 mm	24.33 mm	36.02 mm
