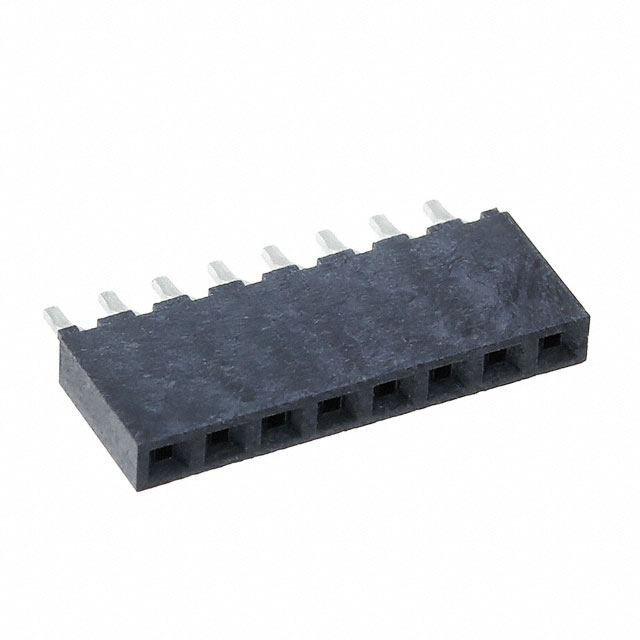

M22-6540842R
ActiveHarwin Inc.
CONN, R/A RCPT, 8POS, 1ROW, 2MM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M22-6540842R
ActiveHarwin Inc.
CONN, R/A RCPT, 8POS, 1ROW, 2MM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M22-6540842R |
|---|---|
| Applications | General Purpose |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 0.59 µin |
| Contact Finish Thickness - Mating | 0.015 µm |
| Contact Finish Thickness - Post | 2.03 µm |
| Contact Finish Thickness - Post | 80 µin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating (Amps) | 2 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.079 in |
| Insulation Height | 2 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Termination | Solder |
M22-654 Series
| Part | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Fastening Type | Contact Finish - Post | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Mounting Type | Number of Positions Loaded | Termination | Pitch - Mating [x] | Pitch - Mating [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Connector Type | Current Rating (Amps) | Material Flammability Rating | Number of Positions | Contact Material | Insulation Height | Insulation Height | Insulation Color | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Gold | 2.03 µm | 80 µin | Push-Pull | Tin | Square | -40 °C | 105 ░C | General Purpose | Surface Mount Right Angle | All | Solder | 0.079 in | 2 mm | 0.59 µin | 0.015 µm | 1 | Receptacle | 2 A | UL94 V-0 | 4 | Phosphor Bronze | 0.079 in | 2 mm | Black | Forked |
Harwin Inc. | Gold | 2.03 µm | 80 µin | Push-Pull | Tin | Square | -40 °C | 105 ░C | General Purpose | Surface Mount Right Angle | All | Solder | 0.079 in | 2 mm | 0.59 µin | 0.015 µm | 1 | Receptacle | 2 A | UL94 V-0 | 10 | Phosphor Bronze | 0.079 in | 2 mm | Black | Forked |
Harwin Inc. | Gold | 2.03 µm | 80 µin | Push-Pull | Tin | Square | -40 °C | 105 ░C | General Purpose | Surface Mount Right Angle | All | Solder | 0.079 in | 2 mm | 0.59 µin | 0.015 µm | 1 | Receptacle | 2 A | UL94 V-0 | 6 | Phosphor Bronze | 0.079 in | 2 mm | Black | Forked |
Harwin Inc. | Gold | 2.03 µm | 80 µin | Push-Pull | Tin | Square | -40 °C | 105 ░C | General Purpose | Surface Mount Right Angle | All | Solder | 0.079 in | 2 mm | 0.59 µin | 0.015 µm | 1 | Receptacle | 2 A | UL94 V-0 | Phosphor Bronze | 0.079 in | 2 mm | Black | Forked | |
Harwin Inc. | Gold | 2.03 µm | 80 µin | Push-Pull | Tin | Square | -40 °C | 105 ░C | General Purpose | Surface Mount Right Angle | All | Solder | 0.079 in | 2 mm | 0.59 µin | 0.015 µm | 1 | Receptacle | 2 A | UL94 V-0 | 8 | Phosphor Bronze | 0.079 in | 2 mm | Black | Forked |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M22-654 Series
8 Position Receptacle Connector 0.079" (2.00mm) Surface Mount, Right Angle Gold
