M22-6541042R

Active

Harwin Inc.

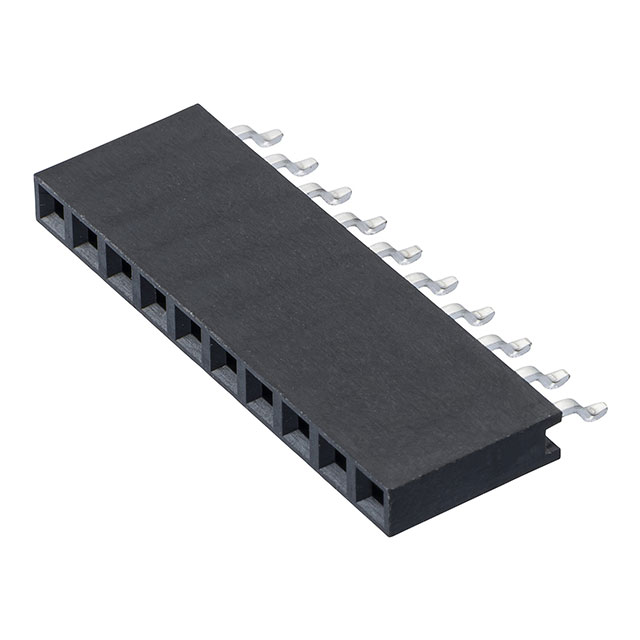

CONN, R/A RCPT, 10POS, 1ROW, 2MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M20-003 +1

M22-6541042R

Active

Harwin Inc.

CONN, R/A RCPT, 10POS, 1ROW, 2MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet M20-003 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M22-6541042R

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.59 µin
Contact Finish Thickness - Mating	0.015 µm
Contact Finish Thickness - Post	2.03 µm
Contact Finish Thickness - Post	80 µin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder

M22-654 Series

Part	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Finish - Post	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Number of Positions Loaded	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Connector Type	Current Rating (Amps)	Material Flammability Rating	Number of Positions	Contact Material	Insulation Height	Insulation Height	Insulation Color	Contact Type
Harwin Inc. M22-6540442R	Gold	2.03 µm	80 µin	Push-Pull	Tin	Square	-40 °C	105 ░C	General Purpose	Surface Mount Right Angle	All	Solder	0.079 in	2 mm	0.59 µin	0.015 µm	1	Receptacle	2 A	UL94 V-0	4	Phosphor Bronze	0.079 in	2 mm	Black	Forked
Harwin Inc. M22-6541042R	Gold	2.03 µm	80 µin	Push-Pull	Tin	Square	-40 °C	105 ░C	General Purpose	Surface Mount Right Angle	All	Solder	0.079 in	2 mm	0.59 µin	0.015 µm	1	Receptacle	2 A	UL94 V-0	10	Phosphor Bronze	0.079 in	2 mm	Black	Forked
