M22-6540542R

Active

Harwin Inc.

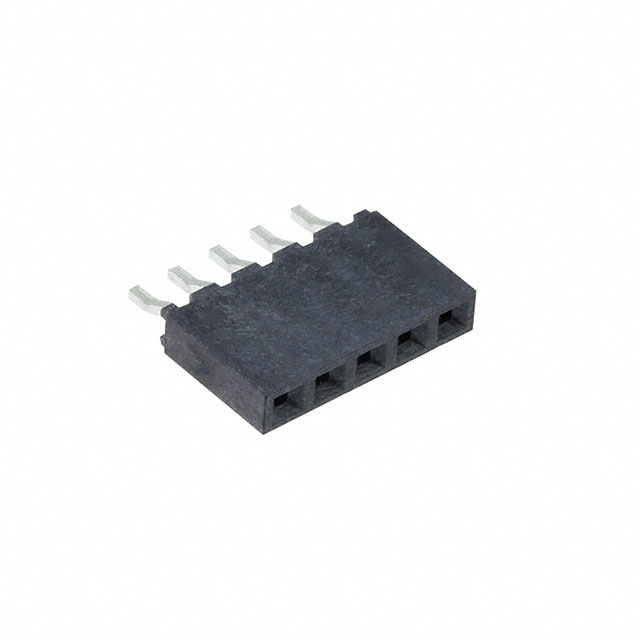

BOARD CONNECTOR, 5 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.079 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M22 Series Spec Sheet +2

M22-6540542R

Active

Harwin Inc.

BOARD CONNECTOR, 5 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.079 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING,

Deep-Dive with AI

DocumentsDatasheet M22 Series Spec Sheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M22-6540542R

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.59 µin
Contact Finish Thickness - Mating	0.015 µm
Contact Finish Thickness - Post	2.03 µm
Contact Finish Thickness - Post	80 µin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder

M22-654 Series

Part	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Finish - Post	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Number of Positions Loaded	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Connector Type	Current Rating (Amps)	Material Flammability Rating	Number of Positions	Contact Material	Insulation Height	Insulation Height	Insulation Color	Contact Type
Harwin Inc. M22-6540442R	Gold	2.03 µm	80 µin	Push-Pull	Tin	Square	-40 °C	105 ░C	General Purpose	Surface Mount Right Angle	All	Solder	0.079 in	2 mm	0.59 µin	0.015 µm	1	Receptacle	2 A	UL94 V-0	4	Phosphor Bronze	0.079 in	2 mm	Black	Forked
Harwin Inc. M22-6541042R	Gold	2.03 µm	80 µin	Push-Pull	Tin	Square	-40 °C	105 ░C	General Purpose	Surface Mount Right Angle	All	Solder	0.079 in	2 mm	0.59 µin	0.015 µm	1	Receptacle	2 A	UL94 V-0	10	Phosphor Bronze	0.079 in	2 mm	Black	Forked
Harwin Inc. M22-6540642R	Gold	2.03 µm	80 µin	Push-Pull	Tin	Square	-40 °C	105 ░C	General Purpose	Surface Mount Right Angle	All	Solder	0.079 in	2 mm	0.59 µin	0.015 µm	1	Receptacle	2 A	UL94 V-0	6	Phosphor Bronze	0.079 in	2 mm	Black	Forked
Harwin Inc. M22-6540542R	Gold	2.03 µm	80 µin	Push-Pull	Tin	Square	-40 °C	105 ░C	General Purpose	Surface Mount Right Angle	All	Solder	0.079 in	2 mm	0.59 µin	0.015 µm	1	Receptacle	2 A	UL94 V-0		Phosphor Bronze	0.079 in	2 mm	Black	Forked
Harwin Inc. M22-6540842R	Gold	2.03 µm	80 µin	Push-Pull	Tin	Square	-40 °C	105 ░C	General Purpose	Surface Mount Right Angle	All	Solder	0.079 in	2 mm	0.59 µin	0.015 µm	1	Receptacle	2 A	UL94 V-0	8	Phosphor Bronze	0.079 in	2 mm	Black	Forked

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.10
		10	$ 0.93
		100	$ 0.83
		500	$ 0.68
	Digi-Reel®	1	$ 1.10
		10	$ 0.93
		100	$ 0.83
		500	$ 0.68
	Tape & Reel (TR)	1300	$ 0.47
Newark	Each (Supplied on Full Reel)	1000	$ 0.68
		2500	$ 0.64
		5000	$ 0.60
		10000	$ 0.57

Description

General part information

M22-654 Series

5 Position Receptacle Connector 0.079" (2.00mm) Surface Mount, Right Angle Gold

Documents

Technical documentation and resources

Datasheet

M22 Series Spec Sheet

Datasheet

M20-003

Drawing EN

Datasheet
