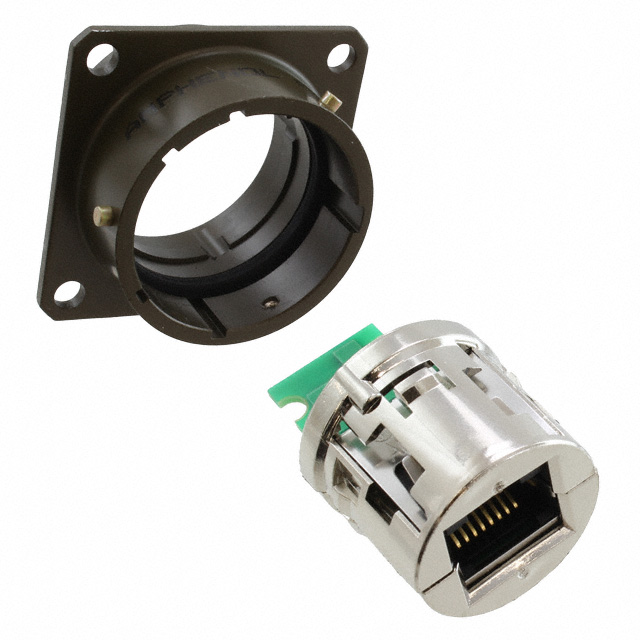

RJF22G00
ActiveAmphenol Socapex
CONN MOD JACK 8P8C UNSHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
RJF22G00
ActiveAmphenol Socapex
CONN MOD JACK 8P8C UNSHIELDED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RJF22G00 |
|---|---|
| Connector Type | Jack |
| Features | Circular Bayonet Coupling |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| LED Color | Does Not Contain LED |
| Mounting Type | Panel Mount, Square Flange |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Straight |
| Ratings | Cat5e |
| Shielding | Unshielded |
| Tab Direction | User Selectable |
| Termination | PC Board, Solder |
RJF22 Series
| Part | Shielding | Length [x] | Length [x] | Connector Type | Number of Positions/Contacts | Features | Mounting Type | Style | Cable Type | Color | Length | Length | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Tab Direction | Ingress Protection | Ratings | Termination | Number of Ports | LED Color | Convert From (Adapter End) | Convert To (Adapter End) | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Socapex | Shielded | 1 m | 3.28 ft | Jack to Plug | 8p8c (RJ45 Ethernet) | Circular Bayonet Coupling Molded Plugs | Flange Panel Mount | Cat5e Industrial Environments - IP68 | Round Cable | Gray | |||||||||||||||
Amphenol Socapex | Shielded | 500 mm | 1.64 ft | Jack to Plug | 8p8c (RJ45 Ethernet) | Circular Bayonet Coupling Molded Plugs | Flange Panel Mount | Cat5e Industrial Environments - IP68 | Round Cable | Gray | |||||||||||||||
Amphenol Socapex | Shielded | Jack to Plug | 8p8c (RJ45 Ethernet) | Circular Bayonet Coupling Molded Plugs | Flange Panel Mount | Cat5e Industrial Environments - IP68 | Round Cable | Gray | 4.92 ' | 1.5 m | |||||||||||||||
Amphenol Socapex | Unshielded | Jack | 8p8c (RJ45 Ethernet) | Circular Bayonet Coupling | Panel Mount Square Flange | Straight | 85 °C | -40 °C | 1 | User Selectable | IP67 - Dust Tight Waterproof | Cat5e | PC Board Solder | 1 | Does Not Contain LED | ||||||||||
Amphenol Socapex | Shielded | Circular Bayonet Coupling | Panel Mount Right Angle Square Flange | 85 °C | -40 °C | Cat5e | Jack 8p8c (RJ45) | 8p8c (RJ45) Jack | Coupler | ||||||||||||||||
Amphenol Socapex | Unshielded | Jack | 8p8c (RJ45 Ethernet) | Circular Bayonet Coupling | Panel Mount Square Flange | Straight | 85 °C | -40 °C | 1 | User Selectable | IP67 - Dust Tight Waterproof | Cat5e | PC Board Solder | 1 | Does Not Contain LED | ||||||||||
Amphenol Socapex | Unshielded | Jack | 8p8c (RJ45 Ethernet) | Panel Mount Square Flange | Straight | 85 °C | -40 °C | 1 | User Selectable | IP68 - Dust Tight Waterproof | Cat5e | PC Board Solder | 1 | Does Not Contain LED | |||||||||||
Amphenol Socapex | Shielded | Jack to Plug | 8p8c (RJ45 Ethernet) | Circular Bayonet Coupling Molded Plugs | Flange Panel Mount | Cat5e Industrial Environments - IP68 | Round Cable | Gray | 4.92 ' | 1.5 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 54.12 | |
| 10 | $ 49.66 | |||
| 25 | $ 47.75 | |||
| 50 | $ 46.16 | |||
| 100 | $ 43.61 | |||
Description
General part information
RJF22 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Unshielded Cat5e
