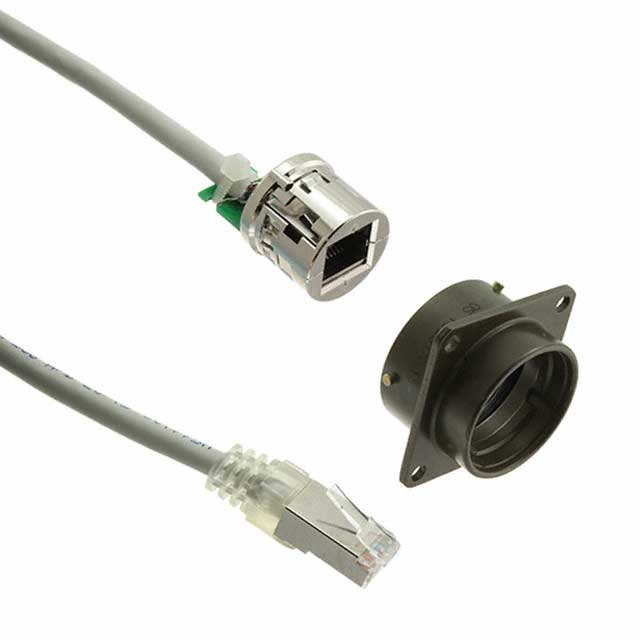

RJF22G05100BTX

Active

Amphenol Socapex

CABLE MOD 8P8C JACK-PLUG 1.64'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRJ Field Series Brochure Datasheet

RJF22G05100BTX

Active

Amphenol Socapex

CABLE MOD 8P8C JACK-PLUG 1.64'

Deep-Dive with AI

DocumentsRJ Field Series Brochure Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJF22G05100BTX

Cable Type	Round Cable
Color	Gray
Connector Type	Jack to Plug
Features	Circular Bayonet Coupling, Molded Plugs
Length [x]	1.64 ft
Length [x]	500 mm
Mounting Type	Panel Mount, Flange
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Shielding	Shielded
Style	Cat5e, Industrial Environments - IP68

RJF22 Series

Part	Shielding	Length [x]	Length [x]	Connector Type	Number of Positions/Contacts	Features	Mounting Type	Style	Cable Type	Color	Length	Length	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Tab Direction	Ingress Protection	Ratings	Termination	Number of Ports	LED Color	Convert From (Adapter End)	Convert To (Adapter End)	Type
Amphenol Socapex RJF22B10100BTX	Shielded	1 m	3.28 ft	Jack to Plug	8p8c (RJ45 Ethernet)	Circular Bayonet Coupling Molded Plugs	Flange Panel Mount	Cat5e Industrial Environments - IP68	Round Cable	Gray
Amphenol Socapex RJF22G05100BTX	Shielded	500 mm	1.64 ft	Jack to Plug	8p8c (RJ45 Ethernet)	Circular Bayonet Coupling Molded Plugs	Flange Panel Mount	Cat5e Industrial Environments - IP68	Round Cable	Gray
Amphenol Socapex RJF22B15100BTX	Shielded			Jack to Plug	8p8c (RJ45 Ethernet)	Circular Bayonet Coupling Molded Plugs	Flange Panel Mount	Cat5e Industrial Environments - IP68	Round Cable	Gray	4.92 '	1.5 m
Amphenol Socapex RJF22ZN00	Unshielded			Jack	8p8c (RJ45 Ethernet)	Circular Bayonet Coupling	Panel Mount Square Flange						Straight	85 °C	-40 °C	1	User Selectable	IP67 - Dust Tight Waterproof	Cat5e	PC Board Solder	1	Does Not Contain LED
Amphenol Socapex RJF22N00SCC	Shielded					Circular Bayonet Coupling	Panel Mount Right Angle Square Flange							85 °C	-40 °C				Cat5e				Jack 8p8c (RJ45)	8p8c (RJ45) Jack	Coupler
Amphenol Socapex RJF22G00	Unshielded			Jack	8p8c (RJ45 Ethernet)	Circular Bayonet Coupling	Panel Mount Square Flange						Straight	85 °C	-40 °C	1	User Selectable	IP67 - Dust Tight Waterproof	Cat5e	PC Board Solder	1	Does Not Contain LED
Amphenol Socapex RJF22B00SCC	Unshielded			Jack	8p8c (RJ45 Ethernet)		Panel Mount Square Flange						Straight	85 °C	-40 °C	1	User Selectable	IP68 - Dust Tight Waterproof	Cat5e	PC Board Solder	1	Does Not Contain LED
Amphenol Socapex RJF22G15100BTX	Shielded			Jack to Plug	8p8c (RJ45 Ethernet)	Circular Bayonet Coupling Molded Plugs	Flange Panel Mount	Cat5e Industrial Environments - IP68	Round Cable	Gray	4.92 '	1.5 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 85.80
		10	$ 78.73
		25	$ 75.70
		50	$ 73.18
		100	$ 69.14

Description

General part information

RJF22 Series

Modular Cable Jack to Plug 8p8c (RJ45, Ethernet) 1.64' (500.0mm) Shielded

Documents

Technical documentation and resources

RJ Field Series Brochure

Datasheet
