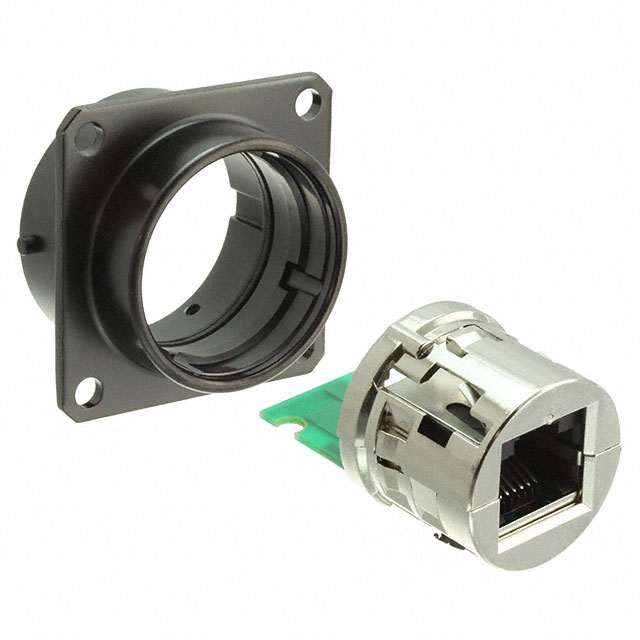

RJF22ZN00

Active

Amphenol Socapex

CONN MOD JACK 8P8C UNSHLD

Deep-Dive with AI

DocumentsRJ Field Series Brochure Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJF22ZN00

Connector Type	Jack
Features	Circular Bayonet Coupling
Ingress Protection	IP67 - Dust Tight, Waterproof
LED Color	Does Not Contain LED
Mounting Type	Panel Mount, Square Flange
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Straight
Ratings	Cat5e
Shielding	Unshielded
Tab Direction	User Selectable
Termination	PC Board, Solder

RJF22 Series

Part	Shielding	Length [x]	Length [x]	Connector Type	Number of Positions/Contacts	Features	Mounting Type	Style	Cable Type	Color	Length	Length	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Tab Direction	Ingress Protection	Ratings	Termination	Number of Ports	LED Color	Convert From (Adapter End)	Convert To (Adapter End)	Type
Amphenol Socapex RJF22B10100BTX	Shielded	1 m	3.28 ft	Jack to Plug	8p8c (RJ45 Ethernet)	Circular Bayonet Coupling Molded Plugs	Flange Panel Mount	Cat5e Industrial Environments - IP68	Round Cable	Gray
Amphenol Socapex RJF22G05100BTX	Shielded	500 mm	1.64 ft	Jack to Plug	8p8c (RJ45 Ethernet)	Circular Bayonet Coupling Molded Plugs	Flange Panel Mount	Cat5e Industrial Environments - IP68	Round Cable	Gray
Amphenol Socapex RJF22B15100BTX	Shielded			Jack to Plug	8p8c (RJ45 Ethernet)	Circular Bayonet Coupling Molded Plugs	Flange Panel Mount	Cat5e Industrial Environments - IP68	Round Cable	Gray	4.92 '	1.5 m
Amphenol Socapex RJF22ZN00	Unshielded			Jack	8p8c (RJ45 Ethernet)	Circular Bayonet Coupling	Panel Mount Square Flange						Straight	85 °C	-40 °C	1	User Selectable	IP67 - Dust Tight Waterproof	Cat5e	PC Board Solder	1	Does Not Contain LED
Amphenol Socapex RJF22N00SCC	Shielded					Circular Bayonet Coupling	Panel Mount Right Angle Square Flange							85 °C	-40 °C				Cat5e				Jack 8p8c (RJ45)	8p8c (RJ45) Jack	Coupler
Amphenol Socapex RJF22G00	Unshielded			Jack	8p8c (RJ45 Ethernet)	Circular Bayonet Coupling	Panel Mount Square Flange						Straight	85 °C	-40 °C	1	User Selectable	IP67 - Dust Tight Waterproof	Cat5e	PC Board Solder	1	Does Not Contain LED
Amphenol Socapex RJF22B00SCC	Unshielded			Jack	8p8c (RJ45 Ethernet)		Panel Mount Square Flange						Straight	85 °C	-40 °C	1	User Selectable	IP68 - Dust Tight Waterproof	Cat5e	PC Board Solder	1	Does Not Contain LED
Amphenol Socapex RJF22G15100BTX	Shielded			Jack to Plug	8p8c (RJ45 Ethernet)	Circular Bayonet Coupling Molded Plugs	Flange Panel Mount	Cat5e Industrial Environments - IP68	Round Cable	Gray	4.92 '	1.5 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 92.08
		10	$ 71.60
		25	$ 65.12
		50	$ 60.76
		100	$ 56.80

Description

General part information

RJF22 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Unshielded Cat5e

Documents

Technical documentation and resources

RJ Field Series Brochure

Datasheet
