M24308/2-2F
ActiveAmphenol Positronic

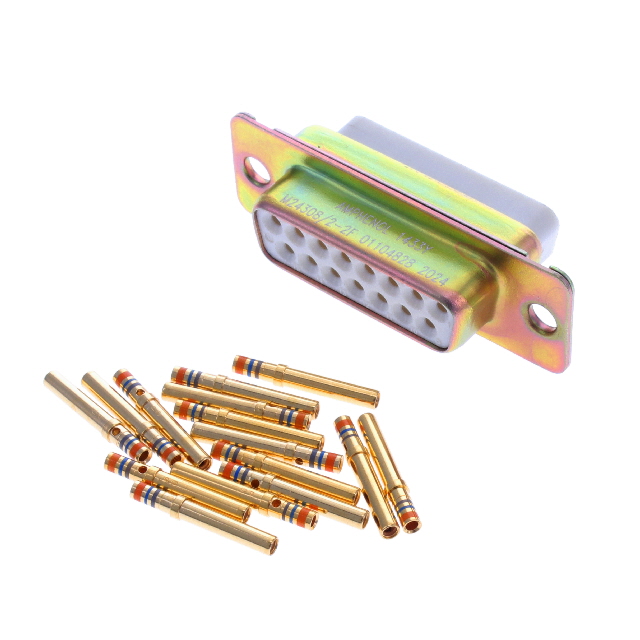

D SUB CONNECTOR, STANDARD, RECEPTACLE, MIL-DTL-24308 SERIES, 15 CONTACTS, DA, CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
M24308/2-2F
ActiveAmphenol Positronic
D SUB CONNECTOR, STANDARD, RECEPTACLE, MIL-DTL-24308 SERIES, 15 CONTACTS, DA, CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M24308/2-2F |
|---|---|
| Color | Natural |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 7.5 A |
| Dielectric Material | Polyester, Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Yellow Cadmium Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Termination | Crimp |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 20 AWG |
