M24308/2-11Z - M24308/2-11Z

M24308/2-11Z

Active
Amphenol Positronic

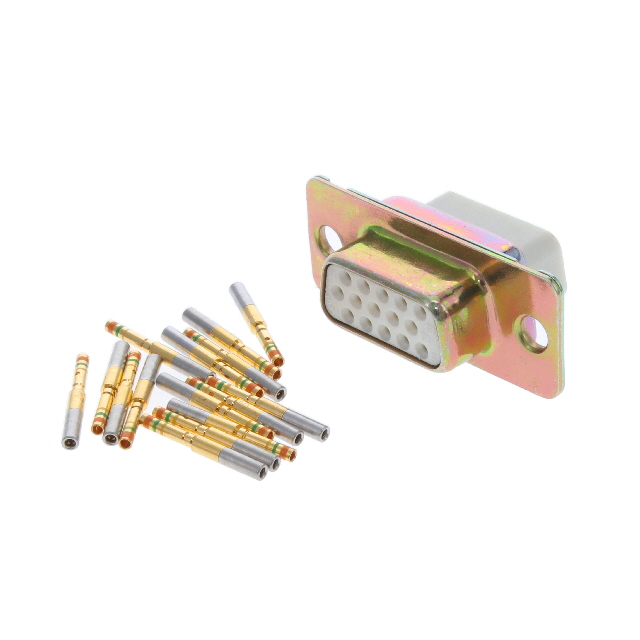

D SUB CONNECTOR, HIGH DENSITY, RECEPTACLE, MIL-DTL-24308 SERIES, 15 CONTACTS, DE, CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetManufacturer Catalogue EN+2
M24308/2-11Z - M24308/2-11Z

M24308/2-11Z

Active
Amphenol Positronic

D SUB CONNECTOR, HIGH DENSITY, RECEPTACLE, MIL-DTL-24308 SERIES, 15 CONTACTS, DE, CRIMP

Deep-Dive with AI

DocumentsDatasheetManufacturer Catalogue EN+2

Technical Specifications

Parameters and characteristics for this part

SpecificationM24308/2-11Z
ColorNatural
Connector StyleHigh Density, D-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact MaterialCopper Alloy
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyester, Glass Filled
Flange FeatureHousing/Shell (Unthreaded)
Material Flammability RatingUL94 V-0
Number of Positions15
Number of Rows3
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Shell Material, FinishSteel, Yellow Chromate Plated Zinc
Shell Size, Connector Layout [custom]DE, E
Shell Size, Connector Layout [custom]1
Shell Size, Connector Layout [custom]High Density
TerminationCrimp
Wire Gauge [Max]28 AWG
Wire Gauge [Min]22 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 20.93
10$ 18.14
25$ 17.20
40$ 16.95
80$ 14.95
230$ 13.96
440$ 13.66
NewarkEach 1$ 36.62
10$ 32.59
25$ 31.54
50$ 29.61
100$ 27.86

Description

General part information

M24308/2 Series

15 Position D-Sub, High Density Receptacle, Female Sockets Connector
