M24308/2-12F

Active

Amphenol Positronic

DSUB CONN,CRIMP, SOCKET, CADMIUM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

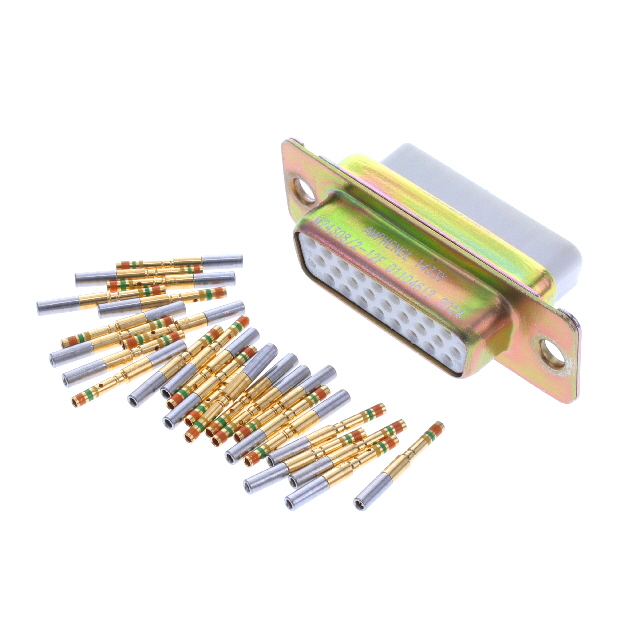

M24308/2-12F

Active

Amphenol Positronic

DSUB CONN,CRIMP, SOCKET, CADMIUM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/2-12F

Color	Natural
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyester, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Yellow Cadmium Plated, Steel
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Crimp
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	22 AWG

M24308/2 Series

Part	Connector Style	Shell Material, Finish	Note	Number of Positions	Connector Type	Flange Feature	Color	Contact Type	Dielectric Material	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Finish	Contact Material	Current Rating (Amps)	Termination	Material Flammability Rating	Wire Gauge [Max]	Wire Gauge [Min]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol Positronic M24308/2-290F	D-Sub High Density	Steel Yellow Cadmium Plated	Contacts Not Included	78	Receptacle for Female Contacts	Housing/Shell (Unthreaded)	Natural	Signal	Polyester Glass Filled	500	-55 °C	125 °C
Amphenol Positronic M24308/2-11Z	D-Sub High Density	Steel Yellow Chromate Plated Zinc		15	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Natural	Signal	Polyester Glass Filled		-55 °C	125 °C	3	Gold	Copper Alloy	5 A	Crimp	UL94 V-0	28 AWG	22 AWG	DE E	1	High Density
Amphenol Positronic M24308/2-2F	D-Sub	Steel Yellow Cadmium Plated		15	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Natural	Signal	Polyester Glass Filled		-55 °C	125 °C	2	Gold	Copper Alloy	7.5 A	Crimp	UL94 V-0	26 AWG	20 AWG				2
Amphenol Positronic M24308/2-12F	D-Sub High Density	Steel Yellow Cadmium Plated		26	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Natural	Signal	Polyester Glass Filled		-55 °C	125 °C	3	Gold	Copper Alloy	5 A	Crimp	UL94 V-0	28 AWG	22 AWG				2	(DA A) High Density
Amphenol Positronic M24308/2-1Z	D-Sub	Steel Yellow Chromate Plated Zinc		9	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Natural	Signal	Polyester Glass Filled		-55 °C	125 °C	2	Gold	Copper Alloy	7.5 A	Crimp	UL94 V-0	26 AWG	20 AWG						DE E	1
Amphenol Positronic M24308/2-2Z	D-Sub	Steel Zinc Plated		15	Receptacle Female Sockets	Housing/Shell (Unthreaded)		Signal	Diallyl Phthalate (DAP)		-55 °C	125 °C	2	Gold	Copper Alloy	11 A	Crimp		28 AWG	20 AWG				2
Amphenol Positronic M24308/2-517	D-Sub	Nickel Plated Steel		15	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Natural	Signal	Polyester Glass Filled		-55 °C	125 °C	2	Gold	Copper Alloy	7.5 A	Crimp	UL94 V-0	26 AWG	20 AWG				2
