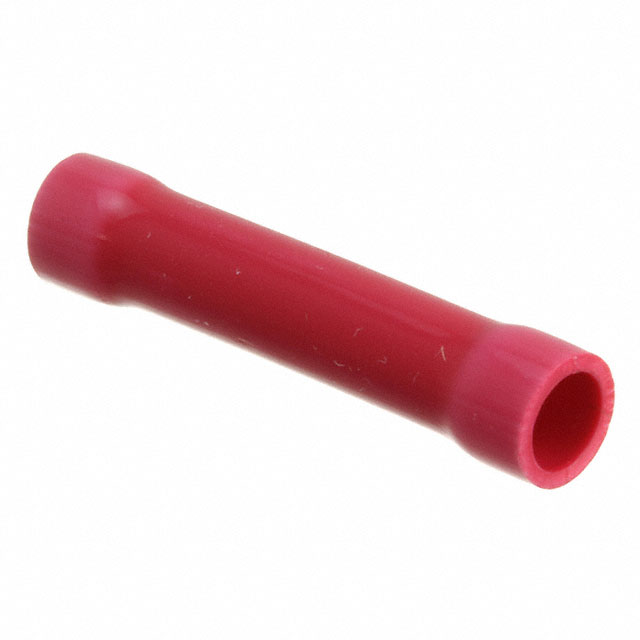

0191540011

Active

Molex

CONN SPLICE 18-22 AWG CRIMP

Search across all available documentation for this part.

Active

Molex

CONN SPLICE 18-22 AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	0191540011

Color	Red
Insulation	Fully Insulated
Number of Wire Entries	2
Terminal Type	Butt Splice, Inline, Individual Openings
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Terminal Type	Color	Number of Wire Entries	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Features	Wire Gauge
Molex 0191540004	Butt Splice Individual Openings Inline	Red	2	Fully Insulated	22 AWG	17.5 AWG	Crimp
Molex 0191540035	Butt Splice Individual Openings Inline	Yellow Blue Stripe	2	Fully Insulated	12 AWG 16 AWG	10 AWG 14 AWG	Crimp	Step Up/Step Down
Molex 0191540017	Butt Splice Individual Openings Inline	Blue	2	Fully Insulated			Crimp
Molex 0191540045	Butt Splice Individual Openings Inline	Blue	2	Fully Insulated			Crimp		6 AWG
Molex 0191540370	Butt Splice Individual Openings Inline	Red	2	Fully Insulated			Crimp		8 AWG
Molex 0191540012	Butt Splice Individual Openings Inline	Red	2	Fully Insulated	22 AWG	17.5 AWG	Crimp
Molex 0191540048	Butt Splice Individual Openings Inline	Yellow	2	Fully Insulated			Crimp		4 AWG
Molex 0191540375	Butt Splice Individual Openings Inline	Red Yellow Stripe	2	Fully Insulated			Crimp	Step Up/Step Down	8 AWG 10 AWG 12 AWG
Molex 0191540224	Butt Splice Individual Openings Inline	Blue	2	Fully Insulated			Crimp
Molex 0191540011	Butt Splice Individual Openings Inline	Red	2	Fully Insulated	22 AWG	17.5 AWG	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Butt Splice, Inline, Individual Openings Connector Crimp 18-22 AWG Red
