0191540004
ActiveMolex

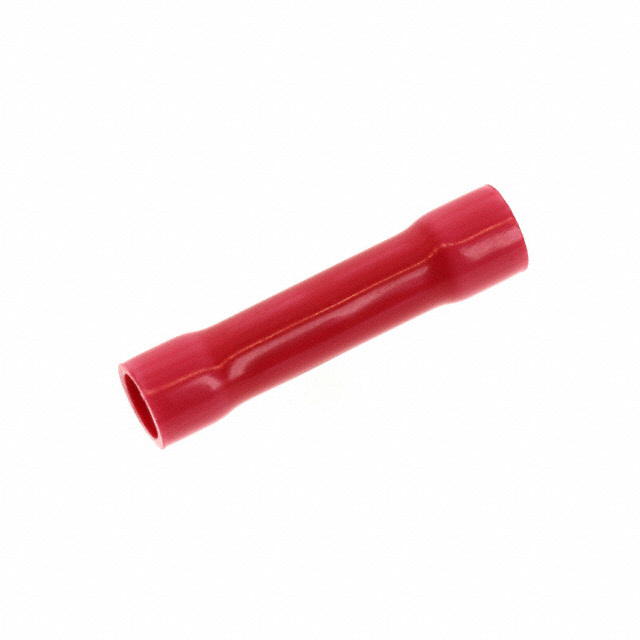

CONN SPLICE 18-22 AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
Documents0190440069 Drawing/Datasheet
0191540004
ActiveMolex
CONN SPLICE 18-22 AWG CRIMP
Deep-Dive with AI
Documents0190440069 Drawing/Datasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0191540004 |
|---|---|
| Color | Red |
| Insulation | Fully Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Butt Splice, Inline, Individual Openings |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
019154 Series
| Part | Terminal Type | Color | Number of Wire Entries | Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Termination | Features | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|
Molex | Butt Splice Individual Openings Inline | Red | 2 | Fully Insulated | 22 AWG | 17.5 AWG | Crimp | ||
Molex | Butt Splice Individual Openings Inline | Yellow Blue Stripe | 2 | Fully Insulated | 12 AWG 16 AWG | 10 AWG 14 AWG | Crimp | Step Up/Step Down | |
Molex | Butt Splice Individual Openings Inline | Blue | 2 | Fully Insulated | Crimp | ||||
Molex | Butt Splice Individual Openings Inline | Blue | 2 | Fully Insulated | Crimp | 6 AWG | |||
Molex | Butt Splice Individual Openings Inline | Red | 2 | Fully Insulated | Crimp | 8 AWG | |||
Molex | Butt Splice Individual Openings Inline | Red | 2 | Fully Insulated | 22 AWG | 17.5 AWG | Crimp | ||
Molex | Butt Splice Individual Openings Inline | Yellow | 2 | Fully Insulated | Crimp | 4 AWG | |||
Molex | Butt Splice Individual Openings Inline | Red Yellow Stripe | 2 | Fully Insulated | Crimp | Step Up/Step Down | 8 AWG 10 AWG 12 AWG | ||
Molex | Butt Splice Individual Openings Inline | Blue | 2 | Fully Insulated | Crimp | ||||
Molex | Butt Splice Individual Openings Inline | Red | 2 | Fully Insulated | 22 AWG | 17.5 AWG | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.34 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.20 | |||
| 1000 | $ 0.16 | |||
| 3000 | $ 0.15 | |||
Description
General part information
019154 Series
Terminal Butt Splice, Inline, Individual Openings Connector Crimp 18-22 AWG Red
