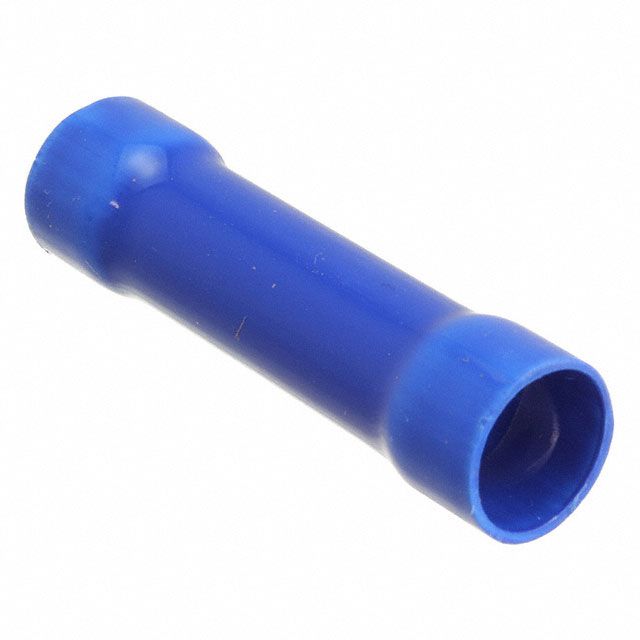

0191540045

Active

Molex

CONN SPLICE 6 AWG CRIMP

Search across all available documentation for this part.

Active

Molex

CONN SPLICE 6 AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	0191540045

Color	Blue
Insulation	Fully Insulated
Number of Wire Entries	2
Terminal Type	Butt Splice, Inline, Individual Openings
Termination	Crimp
Wire Gauge	6 AWG

Part	Terminal Type	Color	Number of Wire Entries	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Features	Wire Gauge
Molex 0191540004	Butt Splice Individual Openings Inline	Red	2	Fully Insulated	22 AWG	17.5 AWG	Crimp
Molex 0191540035	Butt Splice Individual Openings Inline	Yellow Blue Stripe	2	Fully Insulated	12 AWG 16 AWG	10 AWG 14 AWG	Crimp	Step Up/Step Down
Molex 0191540017	Butt Splice Individual Openings Inline	Blue	2	Fully Insulated			Crimp
Molex 0191540045	Butt Splice Individual Openings Inline	Blue	2	Fully Insulated			Crimp		6 AWG
Molex 0191540370	Butt Splice Individual Openings Inline	Red	2	Fully Insulated			Crimp		8 AWG
Molex 0191540012	Butt Splice Individual Openings Inline	Red	2	Fully Insulated	22 AWG	17.5 AWG	Crimp
Molex 0191540048	Butt Splice Individual Openings Inline	Yellow	2	Fully Insulated			Crimp		4 AWG
Molex 0191540375	Butt Splice Individual Openings Inline	Red Yellow Stripe	2	Fully Insulated			Crimp	Step Up/Step Down	8 AWG 10 AWG 12 AWG
Molex 0191540224	Butt Splice Individual Openings Inline	Blue	2	Fully Insulated			Crimp
Molex 0191540011	Butt Splice Individual Openings Inline	Red	2	Fully Insulated	22 AWG	17.5 AWG	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.08

General part information

Terminal Butt Splice, Inline, Individual Openings Connector Crimp 6 AWG Blue
