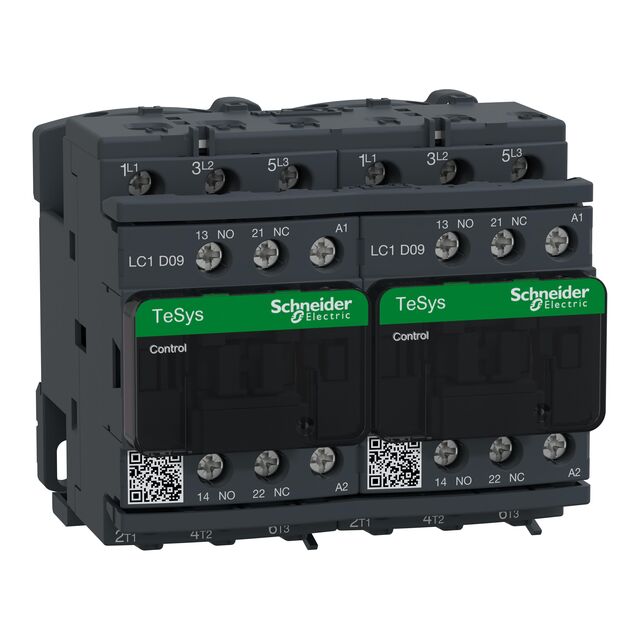

LC2D09E7
ActiveSQUARE D BY SCHNEIDER ELECTRIC
CONTACTOR, 9 A, DIN RAIL, PANEL, 690 VAC, 3PST-NO, 3 POLE, 5.5 KW
Deep-Dive with AI
Search across all available documentation for this part.
LC2D09E7
ActiveSQUARE D BY SCHNEIDER ELECTRIC
CONTACTOR, 9 A, DIN RAIL, PANEL, 690 VAC, 3PST-NO, 3 POLE, 5.5 KW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LC2D09E7 |
|---|---|
| Coil Voltage | 48 VAC/DC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Rating (Current) | 9 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 38.4 VAC |
| Must Release Voltage | 14.4 VAC |
| Operate Time | 22 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 19 ms |
| Switching Voltage | 690 VAC, 300 VDC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
tesys-d Series
CONTACTOR, 9 A, DIN RAIL, PANEL, 690 VAC, 3PST-NO, 3 POLE, 5.5 KW
