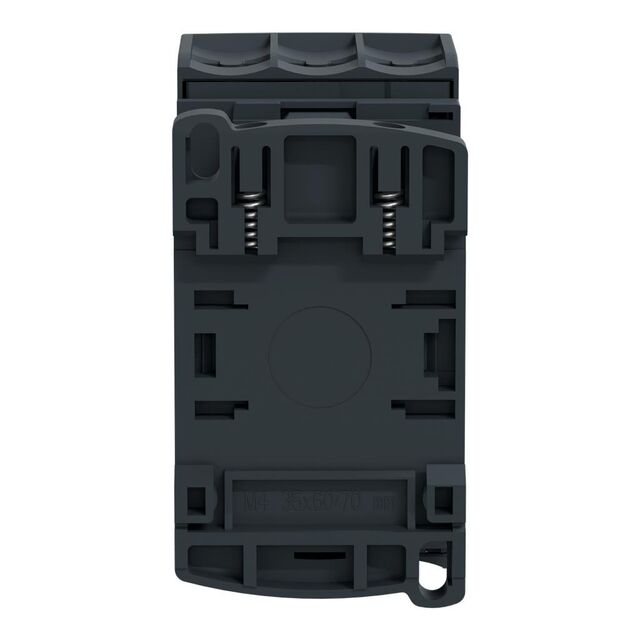

LC1D25FD
ActiveSQUARE D BY SCHNEIDER ELECTRIC
CONTACTOR: 3-POLE; NO X3; AUXILIARY CONTACTS: NO + NC; 110VDC; 25A
Deep-Dive with AI
Search across all available documentation for this part.
LC1D25FD
ActiveSQUARE D BY SCHNEIDER ELECTRIC
CONTACTOR: 3-POLE; NO X3; AUXILIARY CONTACTS: NO + NC; 110VDC; 25A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D25FD |
|---|---|
| Coil Voltage | 110 VDC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Rating (Current) | 25 A |
| Features | Auxiliary Contacts, Diode |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 77 VDC |
| Must Release Voltage | 11 VDC |
| Operate Time | 72.45 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 24 ms |
| Switching Voltage | 690 VAC, 300 VDC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
tesys-d Series
CONTACTOR: 3-POLE; NO X3; AUXILIARY CONTACTS: NO + NC; 110VDC; 25A
