CAD32Q7

Active

SQUARE D BY SCHNEIDER ELECTRIC

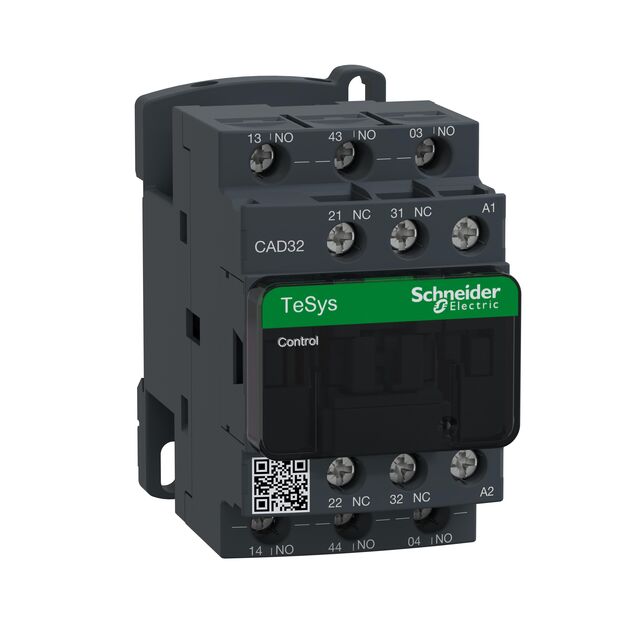

CONTACTOR: 5-POLE; NC X2 + NO X3; 380VAC; 10A; TESYS D; -40÷70°C

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CAD32Q7

Approval Agency	CCC, EAC, UKCA, UL, CE, CSA, CB
Coil Type	Non Latching
Coil Voltage	380 VAC
Contact Form	5PST-3NO/2NC (3 Form A, 2 Form B)
Contact Rating (Current)	10 A
Mounting Type	DIN Rail
Must Operate Voltage	323 VAC
Must Release Voltage	114 VAC
Operate Time	22 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	17 ms
Switching Voltage	690 VAC
Termination Style	Screw Terminal

tesys-d Series

Part	Coil Voltage	Must Operate Voltage	Contact Rating (Current)	Mounting Type	Must Release Voltage	Switching Voltage	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Features	Operate Time	Release Time	Coil Type	Approval Agency	Relay Type
SQUARE D BY SCHNEIDER ELECTRIC LC1D09FD	110 VDC	77 VDC	9 A	Chassis Mount DIN Rail	11 VDC	300 VDC 690 VAC	Screw Terminal	-40 °C	70 °C	3PST-NO (3 Form A)	Auxiliary Contacts Diode	72.45 ms	24 ms
SQUARE D BY SCHNEIDER ELECTRIC LC1D128D7	42 VAC/DC	35.7 VAC	25 A	Chassis Mount DIN Rail	12.6 VAC	300 VDC 690 VAC	Screw Terminal	-40 °C	70 °C	4PST-NO (4 Form A)	Auxiliary Contacts	22 ms	19 ms
SQUARE D BY SCHNEIDER ELECTRIC CAD32Q7	380 VAC	323 VAC	10 A	DIN Rail	114 VAC	690 VAC	Screw Terminal	-40 °C	70 °C	5PST-3NO/2NC (3 Form A 2 Form B)		22 ms	17 ms	Non Latching	CB CCC CE CSA EAC UKCA UL	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC LC1DT25ED	48 VDC	33.6 VDC	25 A	Chassis Mount DIN Rail	4.8 VDC	300 VDC 690 VAC	Screw Terminal	-40 °C	70 °C	4PST-NO (4 Form A)	Auxiliary Contacts Diode	72.45 ms	24 ms
SQUARE D BY SCHNEIDER ELECTRIC LC1D25FD	110 VDC	77 VDC	25 A	Chassis Mount DIN Rail	11 VDC	300 VDC 690 VAC	Screw Terminal	-40 °C	70 °C	3PST-NO (3 Form A)	Auxiliary Contacts Diode	72.45 ms	24 ms
SQUARE D BY SCHNEIDER ELECTRIC LC2D18F7	110 VAC/DC	88 VAC/DC	18 A	Chassis Mount DIN Rail	33 VAC	300 VDC 690 VAC	Screw Terminal	-40 °C	70 °C	3PST-NO (3 Form A)	Auxiliary Contacts	22 ms	19 ms
SQUARE D BY SCHNEIDER ELECTRIC LC2D09E7	48 VAC/DC	38.4 VAC	9 A	Chassis Mount DIN Rail	14.4 VAC	300 VDC 690 VAC	Screw Terminal	-40 °C	70 °C	3PST-NO (3 Form A)	Auxiliary Contacts	22 ms	19 ms
SQUARE D BY SCHNEIDER ELECTRIC LC2D18B7	24 VAC	19.2 VAC	18 A	Chassis Mount DIN Rail	7.2 VAC	300 VDC 690 VAC	Screw Terminal	-40 °C	70 °C	3PST-NO (3 Form A)	Auxiliary Contacts	22 ms	19 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	16	$ 72.67
Newark	Each	1	$ 58.18
		25	$ 55.52
		50	$ 54.04
		100	$ 52.27
		250	$ 50.50
TME	N/A	1	$ 77.88
		5	$ 70.80
		10	$ 66.08

Description

General part information

tesys-d Series

General Purpose Relay 5PST-3NO/2NC (3 Form A, 2 Form B) 380VAC Coil DIN Rail
