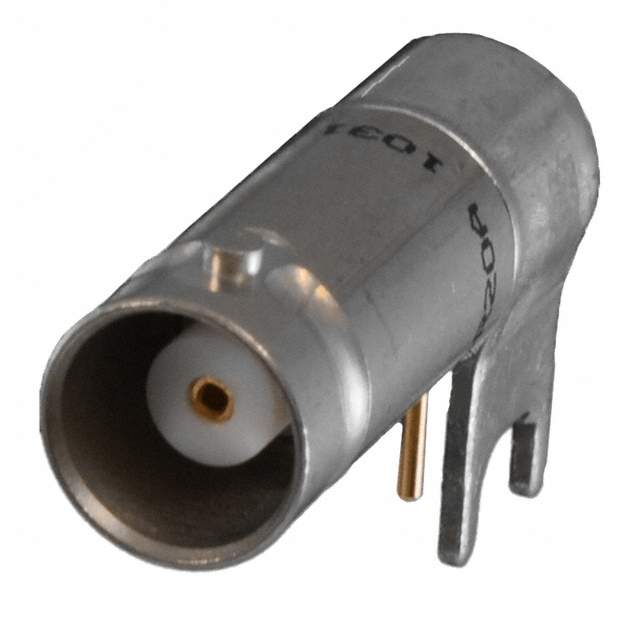

CBJR20A

Active

Cinch Connectivity Solutions Trompeter

CONN BNC JACK R/A 50 OHM PCB

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC JACK R/A 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	CBJR20A

Body Finish	Nickel
Body Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Center Contact Material	Voltage Rating	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Connector Style	Center Contact Plating	Features	Mating Cycles	Body Material	Connector Type	Mounting Type	Frequency - Max [Max]	Number of Ports	Body Finish	Housing Color	Fastening Type	Shield Termination	Impedance	Dielectric Material
Cinch Connectivity Solutions Trompeter CBJR70	Beryllium Copper	400 V	Solder	-65 ░C	165 °C	Non-Constant	TRB Twinaxial/Triaxial	Gold	Three Lug	500	Brass	Female Socket (Concentric) Jack	Through Hole Right Angle	500 MHz	1	Nickel	Silver	Bayonet Lock	Solder
Cinch Connectivity Solutions Trompeter CBJR157	Beryllium Copper	400 V	Solder	-65 ░C	200 °C	Non-Constant	TRS Twinaxial/Triaxial	Gold	Three Lug	500	Brass	Female Socket Jack	Through Hole Right Angle	500 MHz	1	Nickel	Silver	Bayonet Lock	Solder
Cinch Connectivity Solutions Trompeter CBJR20A		500 V	Solder	-65 ░C	165 °C		BNC	Gold			Brass	Female Socket Jack	Through Hole Right Angle	4 GHz	1	Nickel	Silver	Bayonet Lock	Solder	50 Ohms	Polytetrafluoroethylene (PTFE)
Cinch Connectivity Solutions Trompeter CBJR20		500 V	Solder	-65 ░C	165 °C		BNC	Gold	Board Guide		Brass	Female Socket Jack	Through Hole Right Angle	4 GHz	1	Nickel	Silver	Bayonet Lock	Solder	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
