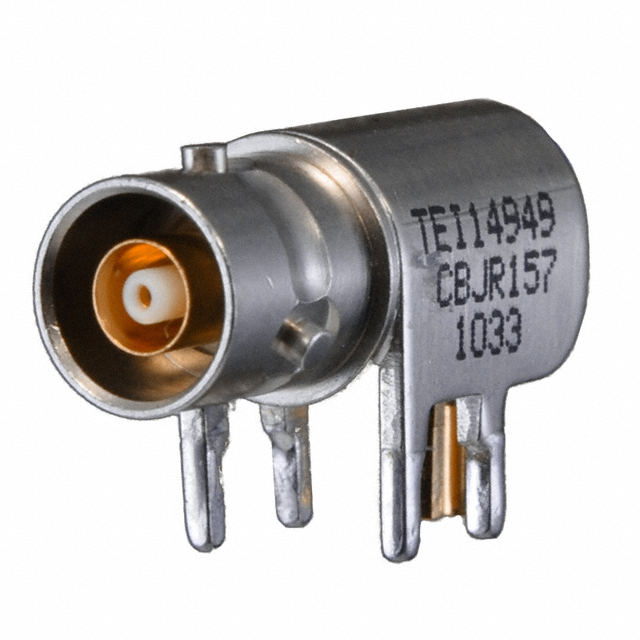

CBJR157

Active

Cinch Connectivity Solutions Trompeter

CONN TTM JACK R/A PCB

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TTM JACK R/A PCB

Technical Specifications

Parameters and characteristics for this part

Part	Center Contact Material	Voltage Rating	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Connector Style	Center Contact Plating	Features	Mating Cycles	Body Material	Connector Type	Mounting Type	Frequency - Max [Max]	Number of Ports	Body Finish	Housing Color	Fastening Type	Shield Termination	Impedance	Dielectric Material
Cinch Connectivity Solutions Trompeter CBJR70	Beryllium Copper	400 V	Solder	-65 ░C	165 °C	Non-Constant	TRB Twinaxial/Triaxial	Gold	Three Lug	500	Brass	Female Socket (Concentric) Jack	Through Hole Right Angle	500 MHz	1	Nickel	Silver	Bayonet Lock	Solder
Cinch Connectivity Solutions Trompeter CBJR157	Beryllium Copper	400 V	Solder	-65 ░C	200 °C	Non-Constant	TRS Twinaxial/Triaxial	Gold	Three Lug	500	Brass	Female Socket Jack	Through Hole Right Angle	500 MHz	1	Nickel	Silver	Bayonet Lock	Solder
Cinch Connectivity Solutions Trompeter CBJR20A		500 V	Solder	-65 ░C	165 °C		BNC	Gold			Brass	Female Socket Jack	Through Hole Right Angle	4 GHz	1	Nickel	Silver	Bayonet Lock	Solder	50 Ohms	Polytetrafluoroethylene (PTFE)
Cinch Connectivity Solutions Trompeter CBJR20		500 V	Solder	-65 ░C	165 °C		BNC	Gold	Board Guide		Brass	Female Socket Jack	Through Hole Right Angle	4 GHz	1	Nickel	Silver	Bayonet Lock	Solder	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRS, Twinaxial/Triaxial Connector Jack, Female Socket Non-Constant Through Hole, Right Angle Solder

Technical documentation and resources

No documents available
