CBJR70

Active

Cinch Connectivity Solutions Trompeter

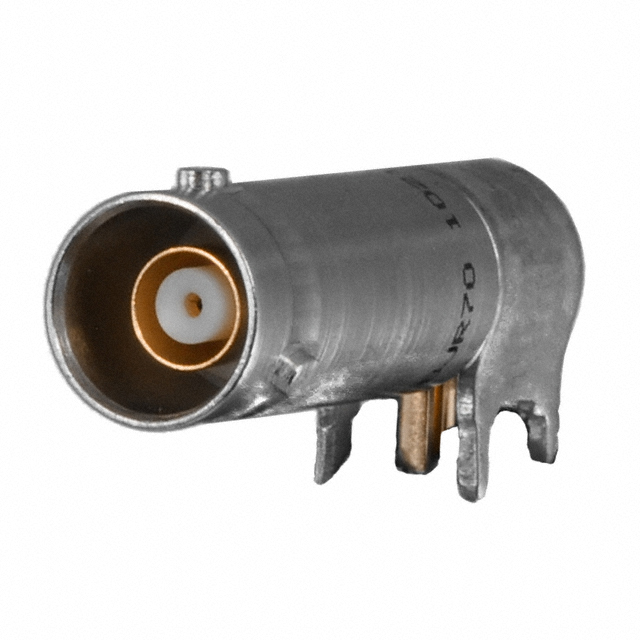

CONN TRB JACK R/A PCB

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TRB JACK R/A PCB

Technical Specifications

Parameters and characteristics for this part

Specification	CBJR70

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Twinaxial/Triaxial, TRB
Connector Type	Female Socket (Concentric), Jack
Contact Termination	Solder
Fastening Type	Bayonet Lock
Features	Three Lug
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	400 V

Part	Center Contact Material	Voltage Rating	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Connector Style	Center Contact Plating	Features	Mating Cycles	Body Material	Connector Type	Mounting Type	Frequency - Max [Max]	Number of Ports	Body Finish	Housing Color	Fastening Type	Shield Termination	Impedance	Dielectric Material
Cinch Connectivity Solutions Trompeter CBJR70	Beryllium Copper	400 V	Solder	-65 ░C	165 °C	Non-Constant	TRB Twinaxial/Triaxial	Gold	Three Lug	500	Brass	Female Socket (Concentric) Jack	Through Hole Right Angle	500 MHz	1	Nickel	Silver	Bayonet Lock	Solder
Cinch Connectivity Solutions Trompeter CBJR157	Beryllium Copper	400 V	Solder	-65 ░C	200 °C	Non-Constant	TRS Twinaxial/Triaxial	Gold	Three Lug	500	Brass	Female Socket Jack	Through Hole Right Angle	500 MHz	1	Nickel	Silver	Bayonet Lock	Solder
Cinch Connectivity Solutions Trompeter CBJR20A		500 V	Solder	-65 ░C	165 °C		BNC	Gold			Brass	Female Socket Jack	Through Hole Right Angle	4 GHz	1	Nickel	Silver	Bayonet Lock	Solder	50 Ohms	Polytetrafluoroethylene (PTFE)
Cinch Connectivity Solutions Trompeter CBJR20		500 V	Solder	-65 ░C	165 °C		BNC	Gold	Board Guide		Brass	Female Socket Jack	Through Hole Right Angle	4 GHz	1	Nickel	Silver	Bayonet Lock	Solder	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRB, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Through Hole, Right Angle Solder
