09140022647

Active

HARTING Technology Group

HAN 70AMP MODULE MALE (UNPROTECTED) - AXIAL SCREW (14 22MM2 - 4AWG)

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 70AMP MODULE MALE (UNPROTECTED) - AXIAL SCREW (14 22MM2 - 4AWG)

Technical Specifications

Parameters and characteristics for this part

Specification	09140022647

Color	Gray
Connector Type	Module
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	70 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Screw
Voltage Rating	600 V

Part	Connector Type	Termination Style	Gender	Current Rating (Amps)	Housing Material	Contact Finish	Number of Positions	Contact Material	Material Flammability Rating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Type
HARTING Technology Group 09140022705	Module	Screw	Female	40 A
HARTING Technology Group 09140022755	Module	Screw	Female	100 A
HARTING Technology Group 09140022751	Module	Screw	Female	100 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	600 V
HARTING Technology Group 09140022651	Module	Screw	Male	100 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	1000 VDC
HARTING Technology Group 09140022742	Module	Screw	Female	70 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	600 V
HARTING Technology Group 09140022750	Module	Screw	Female	100 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	1000 VDC
HARTING Technology Group 09140022703	Module	Solder	Female	40 A	Polycarbonate (PC)		2						500 V	Han® C
HARTING Technology Group 09140022601	Module	Screw	Male	40 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	600 V
HARTING Technology Group 09140022653	Module	Screw	Male	100 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	1000 VDC
HARTING Technology Group 09140022647	Module	Screw	Male	70 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

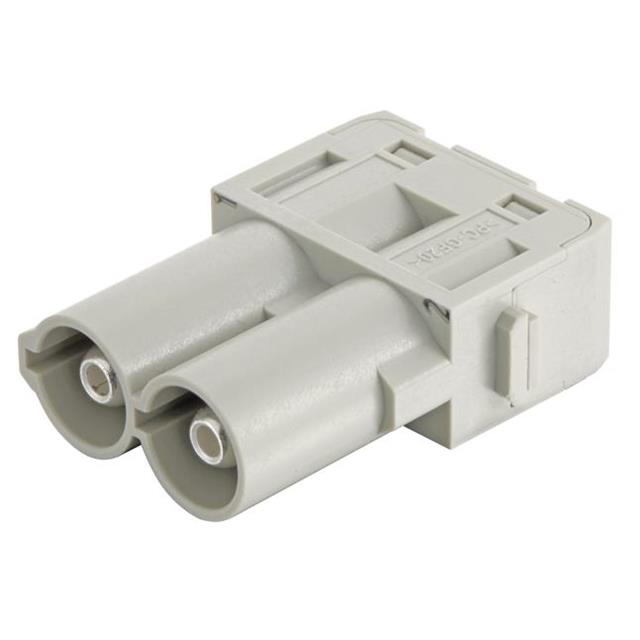

Male Module Gray 2 Position Screw
