09140022703

Active

HARTING Technology Group

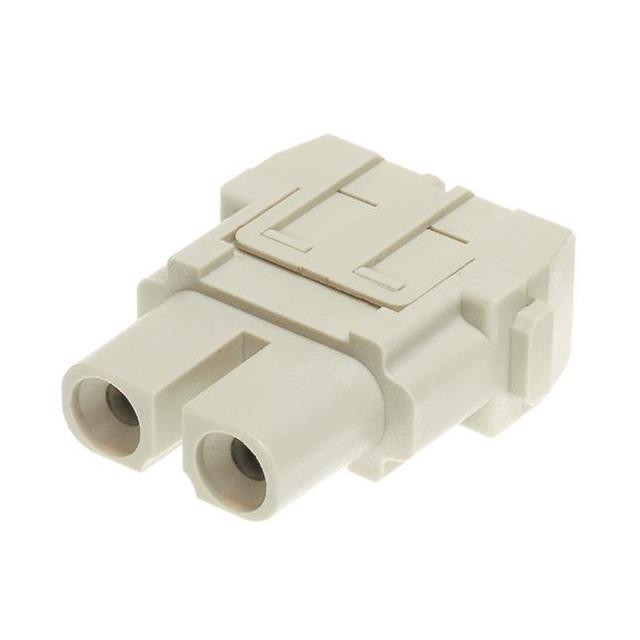

HAN 2MOD BU-S 40A LEITERPLATTENADAPTION ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 2MOD BU-S 40A LEITERPLATTENADAPTION ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Termination Style	Gender	Current Rating (Amps)	Housing Material	Contact Finish	Number of Positions	Contact Material	Material Flammability Rating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Type
HARTING Technology Group 09140022705	Module	Screw	Female	40 A
HARTING Technology Group 09140022755	Module	Screw	Female	100 A
HARTING Technology Group 09140022751	Module	Screw	Female	100 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	600 V
HARTING Technology Group 09140022651	Module	Screw	Male	100 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	1000 VDC
HARTING Technology Group 09140022742	Module	Screw	Female	70 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	600 V
HARTING Technology Group 09140022750	Module	Screw	Female	100 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	1000 VDC
HARTING Technology Group 09140022703	Module	Solder	Female	40 A	Polycarbonate (PC)		2						500 V	Han® C
HARTING Technology Group 09140022601	Module	Screw	Male	40 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	600 V
HARTING Technology Group 09140022653	Module	Screw	Male	100 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	1000 VDC
HARTING Technology Group 09140022647	Module	Screw	Male	70 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Module 2 Position Solder
