09140022653

Active

HARTING Technology Group

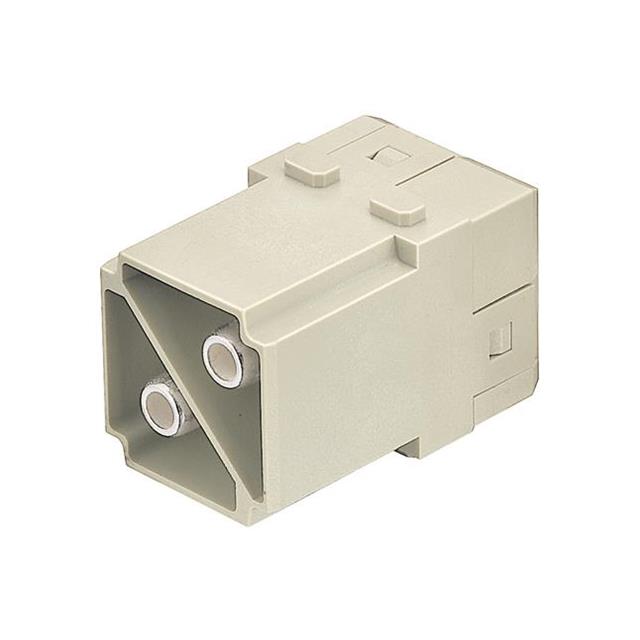

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, MODULE, 2 CONTACTS, PLUG, SCREW PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Technical Data Sheet EN

09140022653

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, MODULE, 2 CONTACTS, PLUG, SCREW PIN

Deep-Dive with AI

DocumentsDrawing EN Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09140022653

Color	Gray
Connector Type	Module
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	100 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Screw
Voltage Rating	1000 VDC

han-modular-r Series

Part	Connector Type	Termination Style	Gender	Current Rating (Amps)	Housing Material	Contact Finish	Number of Positions	Contact Material	Material Flammability Rating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Type
HARTING Technology Group 09140022705	Module	Screw	Female	40 A
HARTING Technology Group 09140022755	Module	Screw	Female	100 A
HARTING Technology Group 09140022751	Module	Screw	Female	100 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	600 V
HARTING Technology Group 09140022651	Module	Screw	Male	100 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	1000 VDC
HARTING Technology Group 09140022742	Module	Screw	Female	70 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	600 V
HARTING Technology Group 09140022750	Module	Screw	Female	100 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	1000 VDC
HARTING Technology Group 09140022703	Module	Solder	Female	40 A	Polycarbonate (PC)		2						500 V	Han® C
HARTING Technology Group 09140022601	Module	Screw	Male	40 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	600 V
HARTING Technology Group 09140022653	Module	Screw	Male	100 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	1000 VDC
HARTING Technology Group 09140022647	Module	Screw	Male	70 A	Polycarbonate (PC)	Silver	2	Copper Alloy	UL94 V-0	Gray	125 °C	-40 °C	600 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 66.50
		10	$ 49.81
		25	$ 44.99
		50	$ 41.86
		100	$ 39.11
		250	$ 35.98
Newark	Each	1	$ 46.85
		5	$ 44.57
		10	$ 42.28
		25	$ 40.27
		50	$ 38.26

Description

General part information

han-modular-r Series

The 09140022653 is a 2-contact Connector Insert made of RAL 7032 (light gray) polycarbonate with silver plated copper alloy contacts. The Han® 200A crimp module male insert has axial screw terminals and accepts 4 to 6AWG wire. It is suitable for use with the Han-Modular® series.

Documents

Technical documentation and resources

Drawing EN

Datasheet

Technical Data Sheet EN

Datasheet
