CP-AD582

Obsolete

Cinch Connectivity Solutions AIM-Cambridge

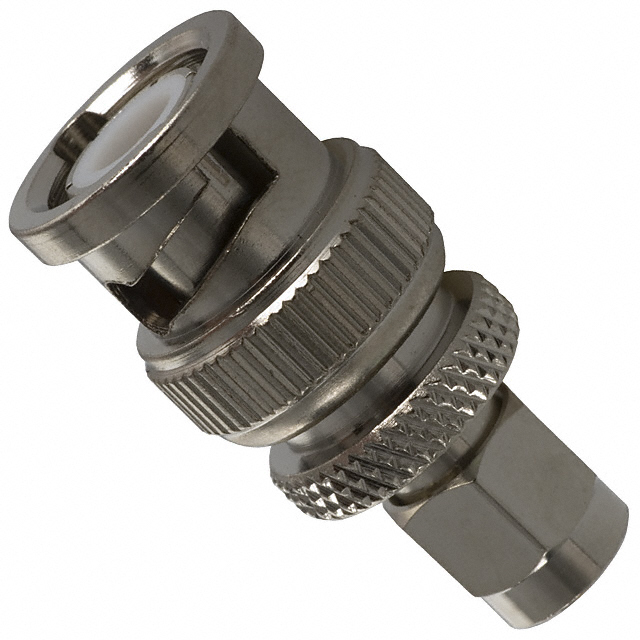

CONN ADAPT BNC PLUG TO SMA PLUG

Search across all available documentation for this part.

Obsolete

Cinch Connectivity Solutions AIM-Cambridge

CONN ADAPT BNC PLUG TO SMA PLUG

Technical Specifications

Parameters and characteristics for this part

Part	Center Contact Plating	Adapter Series	Dielectric Material	Fastening Type	Body Material	Center Gender	Impedance	Convert From (Adapter End)	Includes	Convert To (Adapter End)	Adapter Type	Style	Frequency - Max [Max]	Mounting Feature	Conversion Type	Center Contact Material	Body Finish	Mounting Type	Mating Cycles
Cinch Connectivity Solutions AIM-Cambridge CPAD556M	Gold	BNC to BNC	Polytetrafluoroethylene (PTFE)	Bayonet Lock	Brass	Female to Female	50 Ohms	BNC Jack Female Socket	1 Connector 1 Lockwasher 1 Nut	BNC Jack Female Socket	Jack to Jack	Straight	4 GHz	Bulkhead	Same Series	Beryllium Copper	Nickel
Cinch Connectivity Solutions AIM-Cambridge CP-AD582		BNC to SMA		Bayonet Lock Threaded		Male to Male		BNC Plug Male Pin		Male Pin SMA Plug	Plug to Plug	Straight			Between Series			Free Hanging (In-Line)
Cinch Connectivity Solutions AIM-Cambridge CPAD851	Gold	N to N	Polytetrafluoroethylene (PTFE)		Brass	Female to Female	50 Ohms	Female Socket N Jack	1 Connector 1 Lockwasher 1 Nut	Female Socket N Jack	Jack to Jack	Straight	11 GHz	Bulkhead	Same Series	Beryllium Copper	Nickel		500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To SMA Plug, Male Pin
