CPAD556M
ActiveCinch Connectivity Solutions AIM-Cambridge
COAX ADAPT BNC TO BNC
Deep-Dive with AI
Search across all available documentation for this part.
CPAD556M
ActiveCinch Connectivity Solutions AIM-Cambridge
COAX ADAPT BNC TO BNC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CPAD556M |
|---|---|
| Adapter Series | BNC to BNC |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, BNC Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Impedance | 50 Ohms |

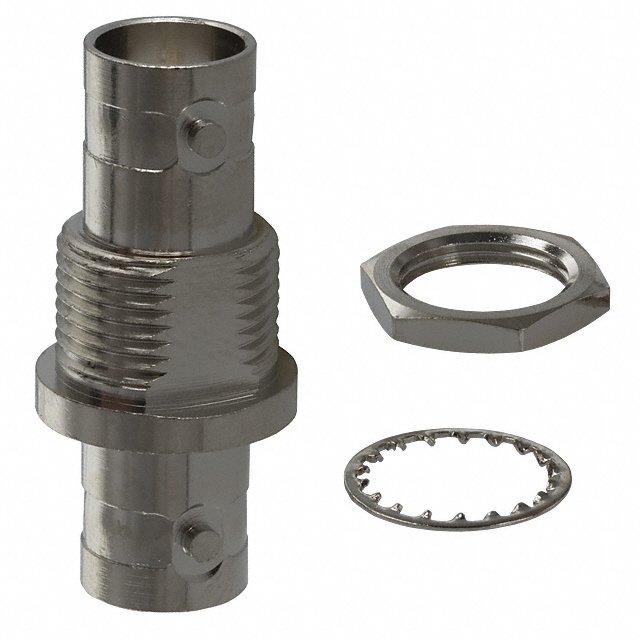

| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Mounting Feature | Bulkhead |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.95 | |
| 10 | $ 5.90 | |||
| 25 | $ 5.53 | |||
| 50 | $ 5.27 | |||
| 100 | $ 5.02 | |||
| 250 | $ 4.70 | |||
| 500 | $ 4.48 | |||
| 1000 | $ 4.27 | |||
| 2500 | $ 4.00 | |||
Description
General part information
CPAD Series
Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
Documents
Technical documentation and resources
No documents available
