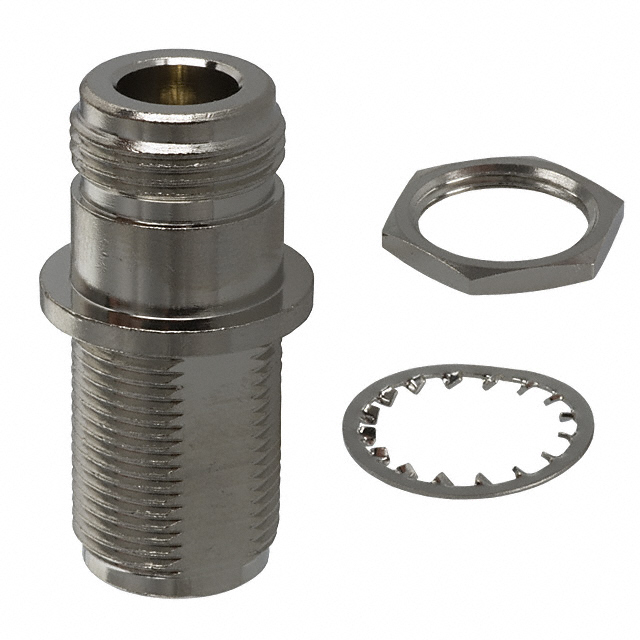

CPAD851

Obsolete

Cinch Connectivity Solutions AIM-Cambridge

CONN ADAPT JACK-JACK N 50 OHM

Search across all available documentation for this part.

Obsolete

Cinch Connectivity Solutions AIM-Cambridge

CONN ADAPT JACK-JACK N 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	CPAD851

Adapter Series	N to N
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead
Style	Straight

Part	Center Contact Plating	Adapter Series	Dielectric Material	Fastening Type	Body Material	Center Gender	Impedance	Convert From (Adapter End)	Includes	Convert To (Adapter End)	Adapter Type	Style	Frequency - Max [Max]	Mounting Feature	Conversion Type	Center Contact Material	Body Finish	Mounting Type	Mating Cycles
Cinch Connectivity Solutions AIM-Cambridge CPAD556M	Gold	BNC to BNC	Polytetrafluoroethylene (PTFE)	Bayonet Lock	Brass	Female to Female	50 Ohms	BNC Jack Female Socket	1 Connector 1 Lockwasher 1 Nut	BNC Jack Female Socket	Jack to Jack	Straight	4 GHz	Bulkhead	Same Series	Beryllium Copper	Nickel
Cinch Connectivity Solutions AIM-Cambridge CP-AD582		BNC to SMA		Bayonet Lock Threaded		Male to Male		BNC Plug Male Pin		Male Pin SMA Plug	Plug to Plug	Straight			Between Series			Free Hanging (In-Line)
Cinch Connectivity Solutions AIM-Cambridge CPAD851	Gold	N to N	Polytetrafluoroethylene (PTFE)		Brass	Female to Female	50 Ohms	Female Socket N Jack	1 Connector 1 Lockwasher 1 Nut	Female Socket N Jack	Jack to Jack	Straight	11 GHz	Bulkhead	Same Series	Beryllium Copper	Nickel		500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms
