09140020301

Active

HARTING Technology Group

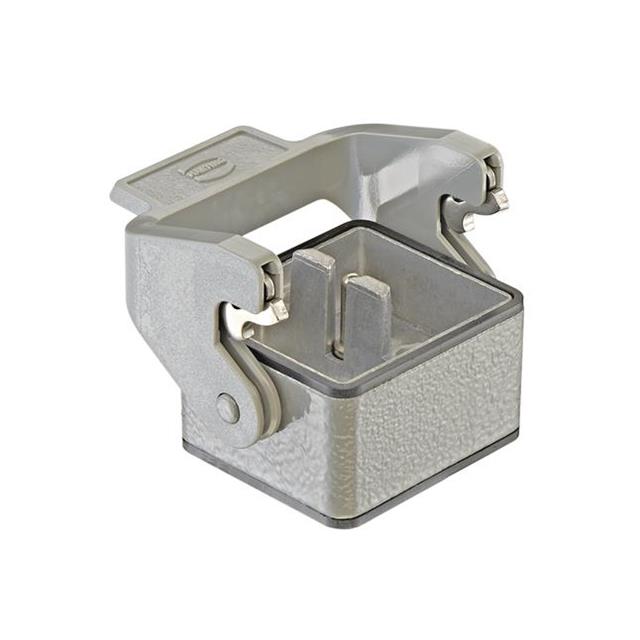

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 1 LEVER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

09140020301

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 1 LEVER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09140020301

Connector Type	Base - Panel Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	57 mm
Size / Dimension [x]	2.244 in
Size / Dimension [y]	39 mm
Size / Dimension [y]	1.535 in
Size / Dimension [z]	1.024 in
Size / Dimension [z]	26 mm
Style	Bottom Entry

09140020 Series

Part	Style	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Lock Location	Connector Type	Ingress Protection	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Housing Material	Size / Dimension [z]	Size / Dimension [y]
HARTING Technology Group 09140020311	Top Entry	57 mm	1.024 in	26 mm	39 mm	1.535 in	2.244 in	Locking Clip (1) on Base Bottom	Hood - Carrier	IP65 - Dust Tight Water Resistant	Gray	125 °C	-40 °C	Powder Coated	Aluminum Die Cast
HARTING Technology Group 09140020301	Bottom Entry	57 mm	1.024 in	26 mm	39 mm	1.535 in	2.244 in	Locking Clip (1) on Base Bottom	Base - Panel Mount	IP65 - Dust Tight Water Resistant	Gray	125 °C	-40 °C	Powder Coated	Aluminum Die Cast
HARTING Technology Group 09140020302
HARTING Technology Group 09140020950	Side Entry	60 mm	1.929 "			2.362 in	2.362 in		Base - Panel Mount 90°	IP65 - Dust Tight Water Resistant	Gray	125 °C	-40 °C	Powder Coated	Zinc Die Cast	49 mm	60 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 47.98
		10	$ 35.66
		25	$ 32.11
		50	$ 29.80
		100	$ 27.78
		250	$ 25.48
Newark	Each	1	$ 35.49
		5	$ 34.19
		10	$ 32.90
		25	$ 32.02
		50	$ 30.92
		100	$ 29.84

Description

General part information

09140020 Series

The 9140020301 is a Han-modular twin series 8AWG heavy duty connector base Housing made of aluminium die-cast with powder-coated surface and Han-Easy Lock® element. It has zinc die-cast panel feed-through with NBR seal.
