09140020950

Active

HARTING Technology Group

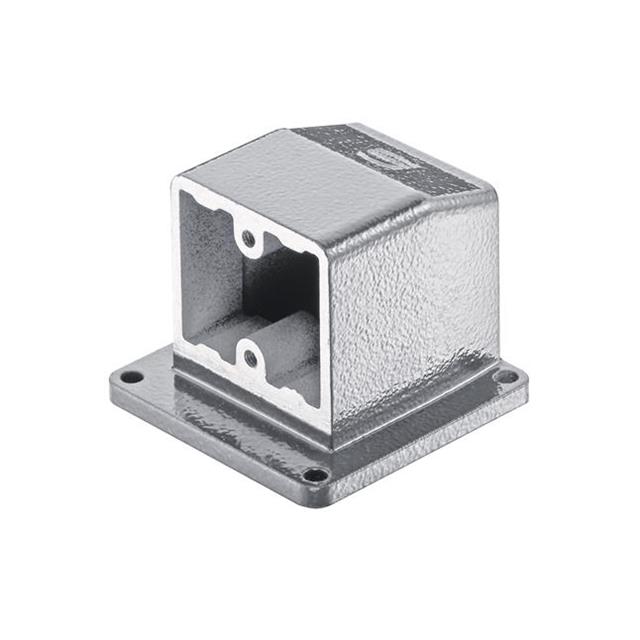

HAN MODULAR TWIN ANGLED HOUSING

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN MODULAR TWIN ANGLED HOUSING

Technical Specifications

Parameters and characteristics for this part

Specification	09140020950

Connector Type	Base - Panel Mount 90°
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Zinc Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	60 mm
Size / Dimension [x]	2.362 in
Size / Dimension [y]	2.362 in
Size / Dimension [y]	60 mm
Size / Dimension [z]	1.929 "
Size / Dimension [z]	49 mm
Style	Side Entry

Part	Style	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Lock Location	Connector Type	Ingress Protection	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Housing Material	Size / Dimension [z]	Size / Dimension [y]
HARTING Technology Group 09140020311	Top Entry	57 mm	1.024 in	26 mm	39 mm	1.535 in	2.244 in	Locking Clip (1) on Base Bottom	Hood - Carrier	IP65 - Dust Tight Water Resistant	Gray	125 °C	-40 °C	Powder Coated	Aluminum Die Cast
HARTING Technology Group 09140020301	Bottom Entry	57 mm	1.024 in	26 mm	39 mm	1.535 in	2.244 in	Locking Clip (1) on Base Bottom	Base - Panel Mount	IP65 - Dust Tight Water Resistant	Gray	125 °C	-40 °C	Powder Coated	Aluminum Die Cast
HARTING Technology Group 09140020302
HARTING Technology Group 09140020950	Side Entry	60 mm	1.929 "			2.362 in	2.362 in		Base - Panel Mount 90°	IP65 - Dust Tight Water Resistant	Gray	125 °C	-40 °C	Powder Coated	Zinc Die Cast	49 mm	60 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount 90° Connector Side Entry IP65 - Dust Tight, Water Resistant
