09140020311
ActiveHARTING Technology Group

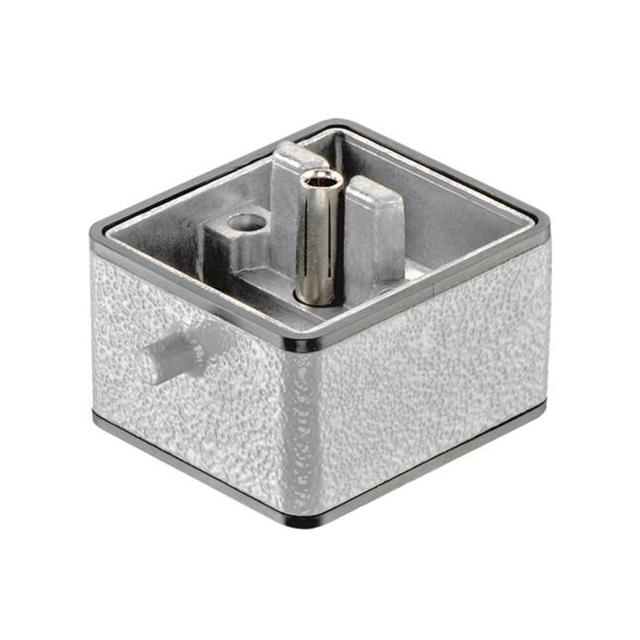

HEAVY DUTY CONNECTOR, CARRIER, HOOD, TOP ENTRY, ALUMINUM BODY, 1 LEVER, 2 HAN-MODULAR TWIN MODULES
Deep-Dive with AI
Search across all available documentation for this part.
09140020311
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, CARRIER, HOOD, TOP ENTRY, ALUMINUM BODY, 1 LEVER, 2 HAN-MODULAR TWIN MODULES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09140020311 |
|---|---|
| Connector Type | Hood - Carrier |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 57 mm |
| Size / Dimension [x] | 2.244 in |
| Size / Dimension [y] | 39 mm |
| Size / Dimension [y] | 1.535 in |
| Size / Dimension [z] | 1.024 in |
| Size / Dimension [z] | 26 mm |
| Style | Top Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09140020 Series
Hood - Carrier Connector Top Entry IP65 - Dust Tight, Water Resistant
